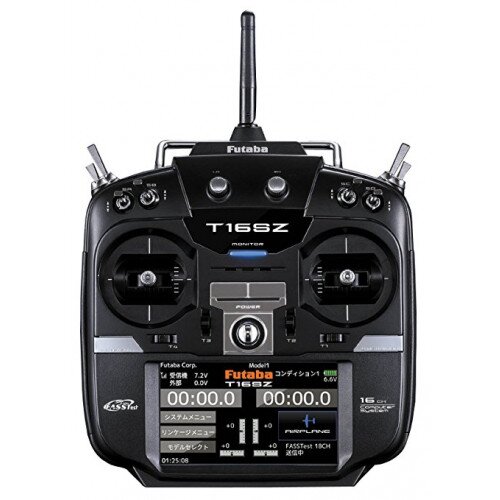

16SZ Transmitter – 18-Channel Digital Proportional RC System
2-Stick, 18-Channel, FASSTest 2.4 GHz System (01004355-3) (01004356-3)
The 16SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.
T16SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
The 16SZ is operated by a 6.0 V/1,800 mAh NiMH battery.
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T16SZ transmitter software files are released, the software can be updated by using an SD card update.
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.
