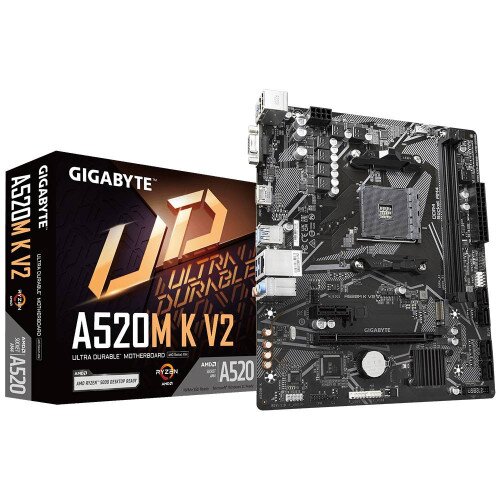

Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard
Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard Display Gallery Item 1
Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard - 2 Display Gallery Item 2
Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard - 3 Display Gallery Item 3
Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard - 4 Display Gallery Item 4
Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard - 5 Display Gallery Item 5

Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard Available Now

By: Gigabyte

Model: A520M K V2 (Rev. 1.0)

Sku: SUHTRVIZVN

Be the first to review this product

Sign up for price alert

AED 579

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • CPU: AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors, (Please refer "CPU Support List" for more information.)
  • Chipset: AMD A520
  • Memory: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory, Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, (Please refer "Memory Support List" for more information.)
  • Onboard Graphics: Integrated Graphics Processor: D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR, Maximum shared memory of 16 GB
  • Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots: CPU: PCI Express x16 slot, supporting PCIe 3.0 and running at x16/ Chipset: PCI Express slot, supporting PCIe 3.0 and running at x1
  • Storage Interface: CPU: M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)/ Chipset: 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10
  • USB: CPU: 4 x USB 3.2 Gen 1 ports on the back panel/ Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header, 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors: 24-pin ATX main power connector, 8-pin ATX 12V power connector, CPU fan header, system fan header, M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, front panel header, front panel audio header, USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), speaker header, Clear CMOS jumper, chassis intrusion header
  • Back Panel Connectors: PS/2 keyboard/mouse port, D-Sub port, HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, RJ-45 port, 3 x audio jacks
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS: 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features: Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., @BIOS, EasyTune, Smart Backup, System Information Viewer, Support for Q-Flash, Support for Xpress Install
  • Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software
  • Operating System: Support for Windows 11 64-bit, Support for Windows 10 64-bit
  • Form Factor: Micro ATX Form Factor; 23.3cm x 19.8cm
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GbE LAN with Bandwidth Management
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Rear HDMI and D-sub for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use

SPEC OVERVIEW

USB 2.0* 2

D-sub

HDMI

USB 3.1 Gen1* 4

GbE LAN with Bandwidth Management

High-End Audio Capacitors

8-Channel HD Audio CODEC

Supports AMD Ryzen Series Processors

Dual Channel DDR4, 2 DIMMs

M.2 Connector for SSD

All Solid Capacitors

SATA3

CONNECTIVITY

NVMe PCIe Gen 3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

*Actual support may vary by CPU.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

  • 5 Temperature Sensors
  • 2 Fan Pin Headers
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Interoperable Fans and Sensors
  • Intuitive UI for Fan Control
  • Fan Connectors
  • Internal Temperature Sensors
  • Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

FAN STOP

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.

For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE EXCELLENCE

BIOS

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon Graphics via HDMI.

HDMI - The Next Generation Multimedia Interface

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

In the Box

  • Gigabyte A520M K V2 (Rev. 1.0) Ultra Durable Motherboard
