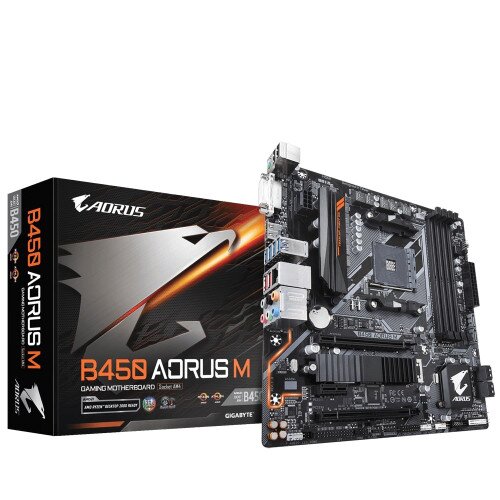

Gigabyte B450 AORUS M (rev. 1.x) Gaming Motherboard Available Now

By: Gigabyte

Model: B450 AORUS M

Sku: 99R7GGNHLJ

Availability: Out of stock New

Availability: Out of stock

  • Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports for Multiple Display
  • Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune and Cloud Station Utilities
  • Anti-Sulfur Resistors Design
  • Ultra Durable 25KV ESD and 15KV Surge LAN Protection
  • Chipset : AMD B450
  • LAN : Realtek GbE LAN chip (10/100/1000 Mbit)
  • Multi-Graphics Technology : Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
  • Operating System : Support for Windows 10 64-bitSupport for Windows 7 64-bit
  • Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Get Ready For AMD Ryzen 5000 Series

GIGABYTE motherboards are ready to support the latest AMD Ryzen 5000 Series Processors and are backwards compatible with AMD Ryzen 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.

Hybrid Digital PWM + Lower RDS(on) MOSFETs

AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Gigabyte Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

Native USB 3.1 Gen2

AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1.

RGB Fusion 2.0 with Digital LEDs Support

With AORUS Motherboards, RGB Fusion 2.0 is even better with Digital LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strip, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Stop

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon Graphics via HDMI.

CPU

  • AM4 Socket : Supports AMD Ryzen 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Memory

  • 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Dual channel memory architecture, Support for DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

  • Integrated Graphics Processor : 1 x DVI-D port, supporting a maximum resolution of 1920x1200 60 Hz, The DVI-D port does not support D-Sub connection by adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz, Support for HDMI 2.0 version and HDCP 2.2, Actual support may vary by CPU.

Audio

  • Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

Expansion Slots

  • 1 x PCI Express x16 slot, running at x16 (PCIEX16), Actual support may vary by CPU, For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

Storage Interface

  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10, Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

  • Chipset : 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel, 2 x USB 3.1 Gen 1 ports available through the internal USB header, 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers), CPU : 4 x USB 3.1 Gen 1 ports on the back panel

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 Socket 3 connector, 6 x SATA 6Gb/s connectors, 1 x CPU cooler LED strip/RGB LED strip header, 1 x RGB (RGBW) LED strip header, 2 x digital LED strip headers, 2 x digital LED strip power select jumpers, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only), 1 x serial port header, 1 x parallel port header 1 x Clear CMOS jumper

Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 2 x USB 3.1 Gen 2 Type-A ports (red), 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 6 x audio jacks

H/W Monitoring

  • Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control , Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  • 2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

In the Box

  • Gigabyte B450 AORUS M (rev. 1.x) Gaming Motherboard
  • 2 x SATA Cables
  • I/O Shield
  • M.2 Screw and Standoff Pack
  • Motherboard Driver Disc
  • Norton Internet Security (OEM version)
  • Realtek 8118 Gaming LAN Bandwidth Control Utility
