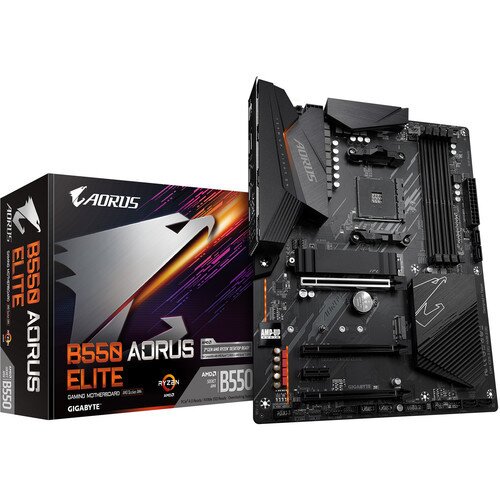

Gigabyte B550 AORUS ELITE Motherboard
Gigabyte B550 AORUS ELITE Motherboard Display Gallery Item 1
Gigabyte B550 AORUS ELITE Motherboard - 2 Display Gallery Item 2
Gigabyte B550 AORUS ELITE Motherboard - 3 Display Gallery Item 3
Gigabyte B550 AORUS ELITE Motherboard - 4 Display Gallery Item 4
Gigabyte B550 AORUS ELITE Motherboard - 5 Display Gallery Item 5
Gigabyte B550 AORUS ELITE Motherboard - 6 Display Gallery Item 6

Gigabyte B550 AORUS ELITE Motherboard - Best Deals Online!

By: Gigabyte

Model: B550 AORUS ELITE

Sku: CVBG2MLSJV

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors
  • Chipset: AMD B550
  • LAN: Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Onboard Graphics: Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: DisplayPort, supporting a maximum resolution of 5120x2880 60 Hz, * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR., HDMI port, supporting a maximum resolution of 4096x2160 60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, Dual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Audio: Realtek ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
  • Storage Interface: M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs, - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs, M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
  • Expansion Slots: PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode, - New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode, * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot., PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode, PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode, PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
  • USB CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 2 x USB 3.2 Gen 1 ports on the back panelChipset: 2 x USB 3.2 Gen 1 ports on the back panel ,2 x USB 3.2 Gen 1 ports available through the internal USB header, 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Operating System: Support for Windows 10 64-bit
  • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
  • Back Panel Connectors: DisplayPort, HDMI port, 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, Q-Flash Plus button, RJ-45 port, optical S/PDIF Out connector, 5 x audio jacks
  • /O Controller: iTE I/ Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control, * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS: 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports AMD 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • True 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Advanced Thermal Design with Enlarged Surface Heatsinks
  • Ultra Durable PCIe 4.0 x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
  • AMP-UP Audio with ALC1200 and WIMA Capacitors
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Rear DisplayPort & HDMI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

True 12+2 Phases Digital Power Design

  • Digital PWM Controller delivers appropriate voltage to the CPU
  • True 12+2 Phases DrMOS with PWM Doublers design to deliver stable power to the CPU. With capability to handle up to 700 Amps current in a total.
  • All-solid capacitors to improve Transient response and minimize oscillation.
  • 24pin+8pin Solid Pin CPU Power Connectors

B550 AORUS ELITE motherboard uses an True 12+2 phases digital power design which includes PWM controller, doublers and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen processors.

Memory Layout - Daisy Chain Design

With the optimized daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

2.5GbE LAN Onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It's perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500Mbps)of RJ-45 ethernet.

High-End WIMA & Audio Capacitors

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Ultra Durable PCIe Armor

Industry Leading Ultra Durable PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

In the Box

  • Gigabyte B550 AORUS ELITE Motherboard
