Buy Gigabyte GeForce GTX 1070 WINDFORCE 8G (rev. 1.0) Graphics Card Now

By: Gigabyte

Model: GV-N1070WF2-8GD rev. 1.0

Sku: K7TXVCEY7K

Availability: Out of stock New

Availability: Out of stock

  • Graphics Processing : GeForce GTX 1070
  • Core Clock : Boost: 1721 MHz / Base: 1531 MHz in OC mode, Boost: 1683 MHz / Base: 1506 MHz in Gaming mode
  • CUDA Cores : 1920
  • Process Technology : 16 nm
  • Memory Clock : 8008 MHz
  • Memory Size : 8 GB
  • Memory Type : GDDR5
  • Memory Bus : 256 bit
  • Memory Bandwidth (GB/sec) :
  • Card Bus : PCI-E 3.0 x 16
  • Digital Max Resolution : 7680x4320
  • Multi-view : 4
  • PCB Form : ATX
  • DirectX : 12
  • OpenGL : 4.5
  • Recommended PSU : 500W
  • Power Connectors : 8 pin1
  • Output : Dual-link DVI-D 1, HDMI-2.0b1 (Max Resolution: 4096x2160 60 Hz), Display Port-1.4 3 (Max Resolution: 7680x4320 60 Hz)
  • SLI Support : 2-way SLI HB
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

WINDFORCE 2X Cooling System

The WINDFORCE 2X cooling system features two 90mm fans, 2 pure copper composite heat-pipes, unique blade fan design, heat pipes direct touch technology together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Unique Blade Fan Design

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.

3D Active Fan

The 3D Active Fan provides semi-passive cooling, the fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

Composite Heat Pipes

The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch

The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

One Click Super Overclocking

With a simple click on AORUS Graphics engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Ultra Durable Components

Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Built for Over Clocking with 6+2 power phases

Compared to founders edition, the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.

In the Box

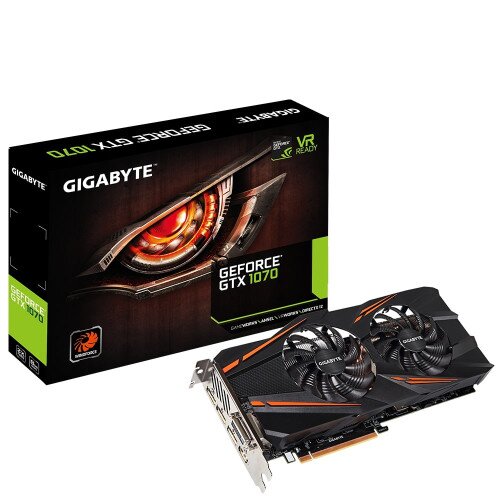

  • Gigabyte GeForce GTX 1070 WINDFORCE 8G (rev. 1.0) Graphics Card
