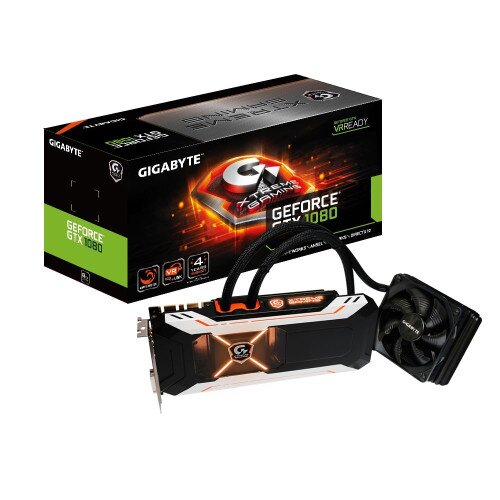

Buy Gigabyte GeForce GTX 1080 Xtreme Gaming WATERFORCE 8G (rev. 1.0) Graphics Card Now

By: Gigabyte

Model: GV-N1080XTREME W-8GD rev. 1.0

Sku: 2BOWTRPUJC

Availability: Out of stock New

Availability: Out of stock

  • Graphics Processing : GeForce GTX 1080
  • I/O : Standard mode (Dual-link DVI-D 1, DP1.4 3, HDMI 2.0b 1), VR mode (Dual-link DVI-D 1, DP 1, HDMI 3)
  • Core Clock : Boost: 1936 MHz / Base: 1784 MHz in OC mode, Boost: 1898 MHz / Base: 1759 MHz in Gaming mode
  • CUDA Cores : 2560
  • Process Technology : 16 nm
  • Memory Clock : OC mode: 10400 MHz, Gaming mode: 10206 MHz
  • Memory Size : 8 GB
  • Memory Type : GDDR5X
  • Memory Bus : 256 bit
  • Memory Bandwidth (GB/sec) :
  • Card Bus : PCI-E 3.0 x 16
  • Digital Max Resolution : 7680x4320 60Hz
  • Multi-view : 4
  • PCB Form : ATX
  • DirectX : 12
  • OpenGL : 4.5
  • Recommended PSU : 500W ( WITH TWO 8-Pin EXTERNAL POWER CONNECTOR)
  • SLI Support : 2-way SLI HB
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

XTREME PERFORMANCE

GIGABYTE Xtreme Gaming Series graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA Pascal GPU architecture, Xtreme gaming graphics card brings you incredible gaming experience.

  • GPU Gauntlet Sorting
  • Pascal-powered graphics card give you superior performance and power efficiency
  • Support up to 8K display 60Hz
  • Outstanding performance for Virtual Reality gaming

100% WATER COOLING

Without any extra fan on the card, WATERFORCE provides the best cooling solution for the GPU/RAM/MOSFET. The copper base and copper heat-pipe dissipate the heat efficiently to result in a real silent environment.

WATERFORCE WITH ALL-IN-ONE COOLING SYSTEM

The WATERFORCE all-in-one cooling system is a pre-assembled and pre-filled liquid solution that provides the easiest way for installation. The optimized pump and water block deliver the most efficient water flow and cooling performance at a lower noise level.

120MM UNIQUE BLADE FAN DESIGN

The 120mm dynamic adjusting fan provides the silent operation. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

DOUBLE BALL BEARING STRUCTURE

The double ball bearing structure has better heat endurance and efficiency than sleeve structure. Hence it will provide longer life time.

ALUMINUM RADIATOR

Built in 120mm black aluminum radiator help to dissipate the heat efficiently.

BRAIDED FEP TUBES

With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.

XTREME VR LINK

Xtreme VR Link provides the best solution for both VR device demand with 3 HDMI ports and 3x 4k monitors demand with 3 DP ports. Outputs are automatically detected when restarting PC.

16.7M CUSTOMIZABLE COLOR LIGHTING

With 16.7M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.

STYLISH METAL BACK PLATE

Glorious black metal back plate provides the solid protection, strengthens the structure and inspires the passion for gaming

LED POWER INDICATORS

Be alert when PCI-E voltage is unstable with the smart power LED indicators. When experiencing any power abnormality, the indicator will alert gamers by flashing light.

BUILT FOR EXTREME OVERCLOCKING WITH 12+2 POWER PHASES

Compared to the reference design, the 12+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. Over temperature protection and load balance to each MOSFET can effectively extend the card life.

TITAN X-GRADE CHOKES AND CAPACITORS FOR EXTREME DURABILITY

Xtreme Gaming Graphics Cards are engineered with the same highest-grade chokes and capacitors as those of Titan X, delivering high quality performance and longer system lifespan.

In the Box

  • Gigabyte GeForce GTX 1080 Xtreme Gaming WATERFORCE 8G (rev. 1.0) Graphics Card
  • Xtreme Gaming member club registration guide
  • Graphics card quick manual
  • Wrist protector
  • PCI-E Power cable x1 (Two 6pin to 8 pin)
  • Xtreme Gaming Sticker
