UNPARALLELED PERFORMANCE

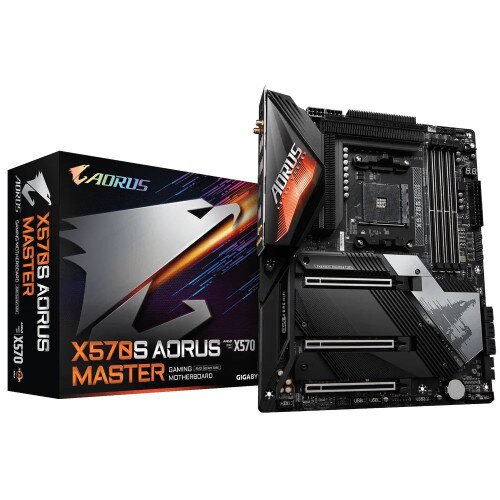

To unleash the full potential of the latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS MASTER is a true beast among motherboards.
Direct Power Design
GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
Memory Layout - Daisy Chain Design
With the optimized daisy-chain routing, GIGABYTE X570S motherboards provide a proven speed of up to DDR4-5400+ MHz with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, and provides professional gamers a denser and faster system memory experience.
ADVANCED THERMAL SOLUTION
X570S AORUS MASTER uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.
Fins-Array II
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that need compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.
Direct-Touch Heatpipe II
With an extra large 8mm heatpipe and made by a new manufacturing process which has narrow down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
NEXT GENERATION CONNECTIVITY
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
First adopter on 2.5GbE LAN onboard
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Intel 802.11ax WIFI 6E
Intel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
DEFINITIVE AESTHETICS
X570S AORUS MASTER features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE Motherboard and reinforce every slot to make each of them solid and durable.
Ultra Durable Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
CPU
- AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, ECC memory (ECC mode) support varies by CPU, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Audio
- Realtek ALC1220-VB audio CODEC, The front panel line out jack supports DSD audio, ESS SABRE9118 DAC chip, Support for DTS:X Ultra, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
Wireless Communication module
- Intel Wi-Fi 6E AX210 : WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.2, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Actual data rate may vary depending on environment and equipment.
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU : AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x16 mode, AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x16 mode, AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors support PCIe 3.0 x8 mode, 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU :AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x8 mode, AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x8 mode, AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors do not support this slot, For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode, 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset : Supporting PCIe 4.0* /3.0 x4 mode, For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesFor AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
USB
- CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 2 x USB 3.2 Gen 1 ports on the back panel, Chipset+ASMedia USB 3.2 Gen 2x2 Controller : 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support, Chipset : 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header, 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 4 x USB 3.2 Gen 1 ports, available through the internal USB headers, Chipset+2 USB 2.0 Hubs : 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 4 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 4 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers., 1 x noise detection header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Thunderbolt add-in card connector, 2 x temperature sensor headers, 1 x power button, 1 x reset button, 1 x Clear CMOS jumper, Voltage Measurement Points
Back Panel Connectors
- 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 5 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks
H/W Monitoring
- Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control, Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install, Noise detection
BIOS
- 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
