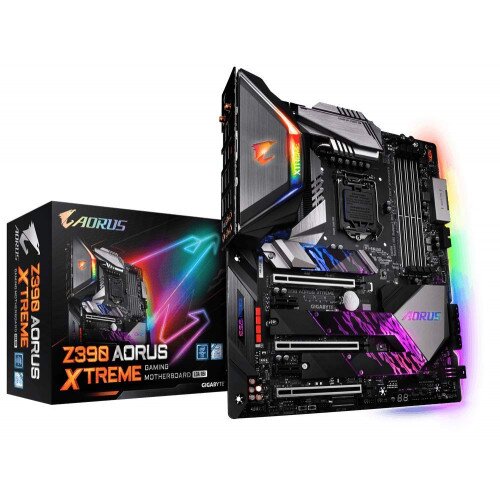

Gigabyte Z390 AORUS XTREME Motherboard
Gigabyte Z390 AORUS XTREME Motherboard Display Gallery Item 1
Gigabyte Z390 AORUS XTREME Motherboard - 2 Display Gallery Item 2
Gigabyte Z390 AORUS XTREME Motherboard - 3 Display Gallery Item 3
Gigabyte Z390 AORUS XTREME Motherboard - 4 Display Gallery Item 4
Gigabyte Z390 AORUS XTREME Motherboard - 5 Display Gallery Item 5
Gigabyte Z390 AORUS XTREME Motherboard - 5 Display Gallery Item 6
Gigabyte Z390 AORUS XTREME Motherboard - 6 Display Gallery Item 7
Gigabyte Z390 AORUS XTREME Motherboard - 7 Display Gallery Item 8

Gigabyte Z390 AORUS XTREME Motherboard - Best Deals Online!

By: Gigabyte

Model: Z390 AORUS XTREME

Sku: V6FNNE6TCB

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Support for 9th and 8th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package, L3 cache varies with CPU
  • Chipset: Intel Z390 Express Chipset
  • LAN: 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1), 1 x Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)
  • Wireless Communication module: Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5, Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
  • Storage Interface: Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, Intel Optane Memory Ready
  • Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies, Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  • Onboard Graphics: Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304 60 Hz, Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160 30 Hz, Maximum shared memory of 1 GB, Actual support may vary by CPU
  • Audio: Realtek ALC1220-VB codec, ESS ES9018K2M DAC and TI OPA1622 operational amplifiers, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control
  • BIOS: 2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS, Support for Q-Flash Plus,PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Operating System: Support for Windows 10 64-bit
  • Form Factor: E-ATX Form Factor; 30.5cm x 27.1cm
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Intel Z390 Gaming motherboard with 16 Phases IR Digital VRM, Fins-Array Heatsink, RGB Fusion 2.0, 802.11ac Wireless, Intel Thunderbolt 3, ESS SABRE 9018K2M DAC, AQUANTIA 10GbE LAN, RGB FAN COMMANDER, OC Touch

  • Supports 9th and 8th Gen Intel Core Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel Optane Memory Ready
  • 16 Phases IR Digital VRM Solution with PowIRstage
  • Cutting-edge Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
  • Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna
  • 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors
  • AQUANTIA 10GbE BASE-T LAN and Intel Gigabit LAN with cFosSpeed
  • Intel Thunderbolt 3 onboard
  • Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 2 Type-C Header
  • Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards

Innovative design, cutting-edge functionality, state-of-the-art aesthetics, sophisticated thermal design, next generation network connectivity ,Hi-Fi level audio system. Z390 AORUS XTREME is the new definition of a flagship motherboard.

Extreme Power Design

To unleash the full potential of the new Intel 8-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z390 AORUS XTREME is a true beast among motherboards.

EXTREME Thermal Design

Z390 AORUS XTREME use some unprecedented and innovative thermal design to ensure stability and low temperature under full loading application and gaming.

Unparalleled Performance

Hungry for better performance? Z390 AORUS XTREME bundles exclusive OC Touch Panel, supports high frequency XMP memory, and full SSD thermal guard to make sure you get the maximum full system performance.

Next Generation Connectivity

A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. Z390 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

Definitive Aesthetics

GIGABYTE ID team designs Z390 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.

Ultra Durable

GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the Z390 AORUS XTREME and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. Z390 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.

In the Box

  • Gigabyte Z390 AORUS XTREME Motherboard
  • AORUS USB flash drive with drivers
  • Six SATA cables
  • Two Wi-Fi antennas
  • GC-SLI2PL bridge connector
  • Two addressable LED strip adapter cables
  • RGB LED strip extension cable
  • Two thermistor cables
  • G Connector
  • AORUS RGB Fan Commander
  • GC-OC Touch
  • M.2 screw(s)/M.2 standoff(s)
  • Velcro Cable Tie
  • Quick Installation Guide
  • User's Manual
