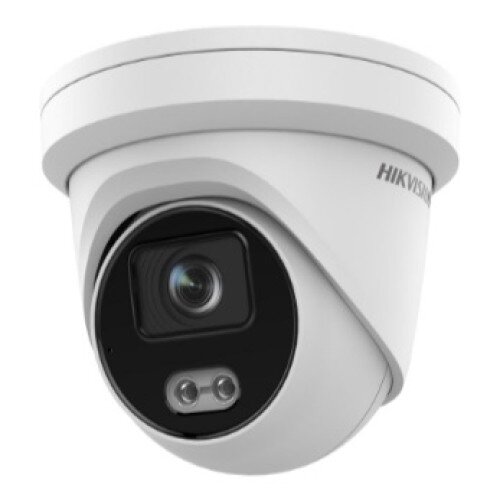

Hikvision DS-2CD2347G2-L(2.8mm) 4 MP ColorVu Fixed Turret Network Camera
Hikvision DS-2CD2347G2-L(2.8mm) 4 MP ColorVu Fixed Turret Network Camera Display Gallery Item 1
Hikvision DS-2CD2347G2-L(2.8mm) 4 MP ColorVu Fixed Turret Network Camera - 2 Display Gallery Item 2

Buy Hikvision DS-2CD2347G2-L(2.8mm) 4 MP ColorVu Fixed Turret Network Camera Now

By: Hikvision

Model: DS-2CD2347G2-L(2.8mm)

Sku: EQ6W2M6SZP

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Camera: Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens: Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° / 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° / 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
  • Lens Mount: M16
  • Iris Type: Fixed
  • Aperture: F1.0 Depth of Field: 2.8 mm, 2.5 m to ∞ / 4 mm, 3.5 m to ∞ / 6 mm, 7.5 m to ∞
  • DORI: 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 m / 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m / 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
  • Illuminator: Supplement Light Type: White Light
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • Video: Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) / 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) / 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) / 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) / Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+ / Sub-stream: H.265/H.264/MJPEG / Third stream: H.265/H.264 / Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Audio: Audio Type: -S: Mono sound
  • Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: -U: Yes
  • Network: Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image: Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Auto, Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Interface: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone: -U: Yes
  • Reset Key: Yes
  • Event: Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, Scene change detection
  • Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
  • General: Power: 12 VDC ± 25%, 0.55 A, max. 6.6 W, O5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Built-in microphone for real-time audio security(-U)
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)

In the Box

  • Hikvision DS-2CD2347G2-L(2.8mm) 4 MP ColorVu Fixed Turret Network Camera
