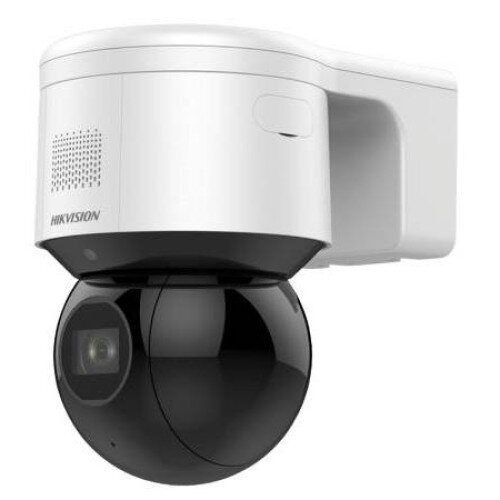

Hikvision DS-2DE3A404IWG-E 4 MP 4x Zoom IR Mini PT Dome Network Camera
Hikvision DS-2DE3A404IWG-E 4 MP 4x Zoom IR Mini PT Dome Network Camera Display Gallery Item 1

Buy Hikvision DS-2DE3A404IWG-E 4 MP 4x Zoom IR Mini PT Dome Network Camera Now

By: Hikvision

Model: DS-2DE3A404IWG-E

Sku: RKZV8N5R8R

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • High quality imaging with 4 MP resolution
  • Focuses on human and vehicle targets classification based on deep learning
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4 × optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 50 m IR range ensures safety at night
  • Support audio visual alarm
  • Power: 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A / Max. 14 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Material: ADC12 + PC
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Camera

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
  • Shutter Speed: 1/1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Zoom: 4 × optical, 16 × digital

Lens

  • Focal Length 2.8 to 12 mm
  • FOV: Horizontal field of view: 96.7° to 31.6° (wide-tele), Vertical field of view: 51.1° to 17.7° (wide-tele), Diagonal field of view: 115.1° to 36.3° (wide-tele)
  • Focus: Auto, semi-auto, manual
  • Aperture: Max. F1.5
  • Zoom Speed: Approx. 2 s (optical lens, wide-tele)

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: IR distance: up to 50 m, white light distance: up to 6m
  • Smart Supplement Light: Yes

PTZ

  • Movement Range (Pan): 0° to 350°, Movement Range (Tilt): 0° to 90°
  • Pan Speed: Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
  • Tilt Speed: Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Preset Freezing: Yes
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Park Action: Preset
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Scheduled Task: Preset,Patrol Scan,dome reboot, dome adjust, aux output
  • Power-off Memory: Yes

Video

  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream

Audio

  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

Network

  • Protocols: IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface, ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels, administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, HikCentral, Hik-Connect, Wi-Fi connection with Hik-Connect directly is not possible.
  • Web Browser: IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+


  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: 52dB:
  • Defog: Digital Defog
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 24 programmable polygon privacy masks, mask color configurable
  • Regional Focus: Yes
  • Regional Exposure: Yes

Interface

  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Built-in Microphone: 1 built-in microphone
  • Built-in Speaker: 1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm: 1 input, 1 output
  • Power Output: 12 VDC, max. 60 mA

Event

  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
  • Smart Event: Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Linkage: Preset, Patrol Scan, Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning，Flashing Alarm

Approval

  • IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

In the Box

  • Hikvision DS-2DE3A404IWG-E 4 MP 4x Zoom IR Mini PT Dome Network Camera
