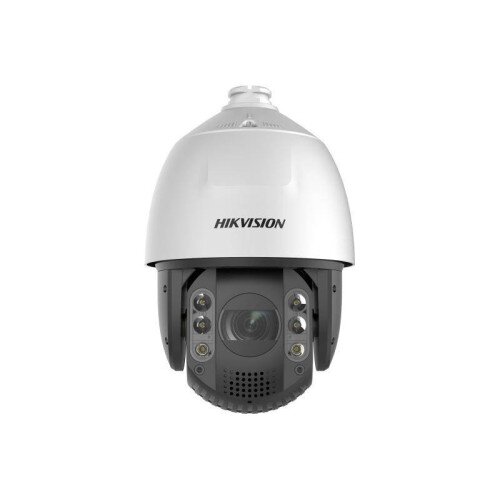

Hikvision DS-2DE7A432IW-AEB(T5) 7-inch 4 MP Network Speed Dome Camera
Hikvision DS-2DE7A432IW-AEB(T5) 7-inch 4 MP Network Speed Dome Camera Display Gallery Item 1

Buy Hikvision DS-2DE7A432IW-AEB(T5) 7-inch 4 MP Network Speed Dome Camera Now

By: Hikvision

Model: DS-2DE7A432IW-AEB(T5)

Sku: YAR17FIRF1

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 1/1.8" progressive scan CMOS
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
  • 32× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Expansive night view with up to 200 m IR distance
  • Focuses on human and vehicle targets classification based on deep learning
  • Face capture: Up to 5 faces captured at the same time
  • Camera: Image Sensor: 1/1.8" progressive scan CMOS / Max. Resolution: 2560 × 1440 / Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR / Shutter Speed: 1/1 s to 1/30000 s / Day & Night: IR cut filter / Zoom: 32x optical, 16x digital / Slow Shutter: Yes / DORI: Detect (25px/m): 2046.9 m Observe (63px/m): 812.3 m Recognize (125px/m): 409.4 m Identify (250px/m): 204.7 m / Lens: Focal Length: 5.9 mm to 188.8 mm / FOV: Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele) / Focus: Auto, semi-auto, manual, rapid focus / Aperture: Max. F1.5 / Zoom Speed: Approx. 4.8 s / Illuminator: Supplement Light Type: IR / Supplement Light Range: IR Distance: up to 200 m / PTZ: Movement Range (Pan): 360° / Movement Range (Tilt): -15° to 90° (auto flip) / Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s / Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s / Proportional Pan: Yes / Presets: 300 / Preset Freezing: Yes / Patrol Scan: 8 patrols, up to 32 presets for each patrol / Pattern Scan: 4 Pattern Scan / Park Action: Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan / 3D Positioning: Yes / PTZ Status Display: Yes / Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output / Power-off Memory: Yes / Video: Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) / Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) / Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) / Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG / Video Bit Rate: 32 kbps to 16384 kbps / H.264 Type: Baseline Profile/Main Profile/High Profile / H.265 Type: Main Profile / Scalable Video Coding (SVC): H.264 and H.265 encoding / Region of Interest (ROI): 8 fixed regions for each stream / Audio: Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM / Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) / Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz / Environment Noise Filtering: Yes / Network: Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour / Simultaneous Live View: Up to 20 channels / API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP / User/Host: Up to 32 users, 3 user levels: administrator, operator, and user / Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) / Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) / Client: iVMS-4200, HikCentral Pro, Hik-Connect / Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+ / Image: Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser / Day/Night Switch: Day, Night, Auto, Schedule / Wide Dynamic Range (WDR): 120 dB / SNR: ) 52 dB / Defog: Digital defog / Image Stabilization: EIS / Image Enhancement: BLC, HLC, 3D DNR / Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable / Regional Focus: Yes / Regional Exposure: Yes / Interface: Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port / On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB / Built-in Speaker: 1 built-in speaker with effective distance reaching max. 30 meters / Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω / Alarm: 2 inputs, 1 output / Reset: Yes / Event: Basic Event: Motion detection, video tampering alarm, exception, alarm input and output / Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection / Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) / Smart Tracking: Manual tracking, auto-tracking / Deep Learning Function: Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face / Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) / General: Power: 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoE / Material: ADC12 / Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) / Demist: Yes / Approval: EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) / Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) / Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) / Protection: IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
SKU YAR17FIRF1
Style No
Version No
Brand Hikvision
Model DS-2DE7A432IW-AEB(T5)
Condition New
Weight (lbs.) 17.8900
Manufacturer's Warranty 3 Year Limited Warranty
