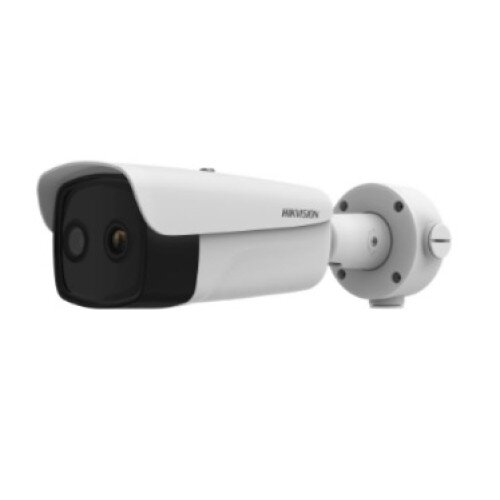

Hikvision DS-2TD2637-10/QY Thermal & Optical Bi-spectrum Network Bullet Camera
Hikvision DS-2TD2637-10/QY Thermal & Optical Bi-spectrum Network Bullet Camera Display Gallery Item 1
Hikvision DS-2TD2637-10/QY Thermal & Optical Bi-spectrum Network Bullet Camera - 2 Display Gallery Item 2

Buy Hikvision DS-2TD2637-10/QY Thermal & Optical Bi-spectrum Network Bullet Camera Now

By: Hikvision

Model: DS-2TD2637-10/QY

Sku: 3NO4N4T6O3

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Thermal Module: Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays / Resolution: 384 x 288 / Pixel Interval: 17 μm / Spectral Range: 8 μm to 14 μm / Focal Length: 9.7 mm / IFOV: 1.75 mrad / Aperture: F1.0 / Field of View: 37.5° × 28.5° (H × V) / Min. Focusing Distance: 1 m / Digital Zoom: ×2, ×4
  • Optical Module: Image Sensor: 1/2.7" Progressive Scan CMOS / Resolution: 2688 × 1520 / Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR / Field of View: 84° × 44.8° (H × V) / Focal Length: 4 mm / Shutter Speed: 1 s to 1/100,000 s / White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light / Day & Night Mode: IR Cut Filter with Auto Switch / WDR: 120 dB / Aperture: F 1.6
  • Image Effect: Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel / Picture in Picture: Display partial image of thermal channel on the full screen of optical channel / Target Coloration: Yes. Supported in white hot and black hot mode.
  • Illuminator: IR Distance: Up to 30 m / IR Intensity and Angle: Automatically adjusted
  • Smart Function: VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total / Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) / Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F) / Temperature Accuracy: ± 8 °C (±14.4 °F)
  • Video and Audio: Main Stream: Optical channel: 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)，60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) / Thermal channel: 25 fps (1280×720P， 704×576， 352×288， 384×288) / Sub-stream: Optical channel: 50 HZ: 25 fps (704 × 576, 352 × 288), 60 HZ: 30 fps (704 × 480, 352 × 240) / Thermal channel: 25 fps (704 × 576, 352 × 288, 384 × 288) / Video Compression: Main Stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG / Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Network: Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL / Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) / API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) / Simultaneous Live View: Up to 20 channels / User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User / Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering / Client: iVMS-4200, Hik-Connect
  • Interface: Alarm Input: 2, alarm input (0-5 VDC) / Alarm Output: 2, alarm output (alarm response actions configurable) / Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage / Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% / Audio Output: Linear level, impedance: 600 Ω / Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface, 1, RS-485 interface (half duplex) / Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • General: Power Supply: 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block, PoE (802.3af, class 3) / Power Consumption: 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W, 12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W, 24VDC: 0.4A, max 9.5W, PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W / Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F), Humidity: 95% or less / Protection Level: IP67 Standard, TVS 4000V lightning protection, surge protection, voltage transient protection, IK10-rated housing
  • Detection Range Table/Smart Function Range: VCA Range for Humans: 70 m / VCA Range for Vehicles: 210 m
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD ( 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Smoking detection Algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR

In the Box

  • Hikvision DS-2TD2637-10/QY Thermal & Optical Bi-spectrum Network Bullet Camera
