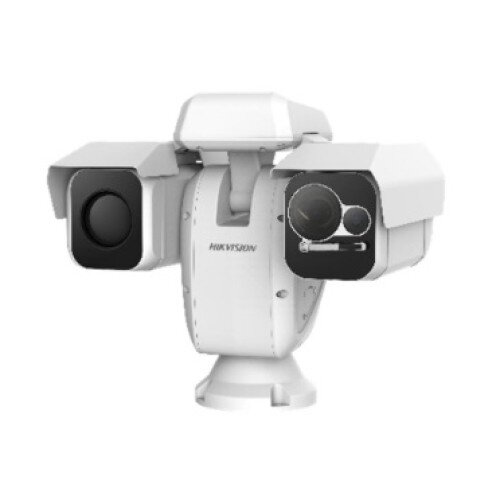

Hikvision DS-2TD6267-100C4L/WY Security Thermal Camera
Hikvision DS-2TD6267-100C4L/WY Security Thermal Camera Display Gallery Item 1

Hikvision DS-2TD6267-100C4L/WY Security Thermal Camera Available Now

By: Hikvision

Model: DS-2TD6267-100C4L/WY

Sku: 6S1AIYKH01

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Thermal Module: Image Sensor: VOx Uncooled Focal Plane Arrays / Resolution: 640 × 512 / Pixel Interval: 17 μm / Response Waveband: 8 μm to 14 μm / NETD: Less than 35 mK (@25 °C,F#=1.0) / Focal Length: 100 mm / Focus Mode: Semi-auto & Manual / IFOV: 0.17 mrad / Aperture: F1.2 / Field of View: 6.23° × 4.98°(H × V) / Min. Focusing Distance: 10 m / Digital Zoom: ×1，×2, ×4, ×8
  • Optical Module: Image Sensor: 1/1.8" Progressive Scan CMOS / Resolution: 2688 × 1520, 4 MP / Min. Illumination: Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON) / Field of View: Wide: 0.92° × 0.52°; Tele: 48.26° × 28.43° / Focal Length: 6 to 336 mm 56x / Aperture (Range): F1.3-F4.0 / Focus Mode: Semi-auto/Manual / Shutter Speed: 1.1 s to 1/30,000 s / WDR: 120 dB / Optical Defog: Yes
  • Image Effect: Picture in Picture: Display partial image of thermal channel on the full screen of optical channel / Target Coloration: Yes. Supported in white hot and black hot mode.
  • PTZ: Movement Range: Pan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip) / Pan Speed: Configurable, From 0.01°/s to 110°/s / Tilt Speed: Configurable, From 0.01°/s to 50°/s / Proportional Zoom: Yes / Presets: 300 in total / Patrol Scan: 8; Up to 32 Presets Per Patrol / Pattern Scan: 4; More Than 10 Minutes Per Pattern / Power Off Memory: Yes / Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan / PT Status: Turn On/Turn Off / Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom / Reboot/Doom Adjust/Aux Output
  • Illuminator: IR Distance: Up to 800 m / IR Intensity and Angle: Automatically adjusted
  • Smart Function: VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene / Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) / Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F) / Temperature Accuracy: ± 8 °C (±14.4 °F) / Fire Detection: Dynamic fire point detection, up to 10 fire points detectable.
  • Video and Audio: Main Stream: Optical channel: 50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) / Thermal channel: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288) / Sub-stream: Optical channel: 50 Hz: 25fps (704 × 576, 352 × 288), 60 Hz: 30 fps (704 × 576, 352 × 288) / Thermal channel: 50 fps (704 × 576, 640 × 512, 384 × 288) / Video Compression: Main stream: H.265+/H.265/H.264+/ H.264 / Sub-stream: H.265/H.264/MJPEG / Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network: Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE / Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) / API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T) / Simultaneous Live View: Up to 20 channels / User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User / Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering / Client: iVMS-4200, Hik-Connect / Web Browser: Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Interface: Alarm Input: 7-ch inputs (0-5 VDC) / Alarm Output: 2-ch relay outputs, alarm response actions configurable / Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage / Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% / Audio Output: Linear Level; Impedance: 600 Ω / Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface, 1, RS-485 interface / Analog Video Output: 1.0 V [p-p]/75 Ω, BNC for thermal channel
  • General: Power: 36VDC ± 20%, 48VDC ± 20%, two-core terminal block / Power Consumption: 5 A, max. 120 W / Work Temperature/Humidity: From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less / Wiper: Yes / Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Detection Range Table/Smart Function Range: VCA Range for Humans: 700 m / VCA Range for Vehicles: 2100 m
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Anti-corrosion Thermal & Optical Bi-spectrum Network Positioning System
  • Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
  • Temperature exception alarm for fire prevention
  • Fire detection smoke detection algorithm
  • 640 × 512 resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • NEMA-4X Standard
  • thermal channel supports EIS, conflicted with intelligent function

In the Box

  • Hikvision DS-2TD6267-100C4L/WY Security Thermal Camera
