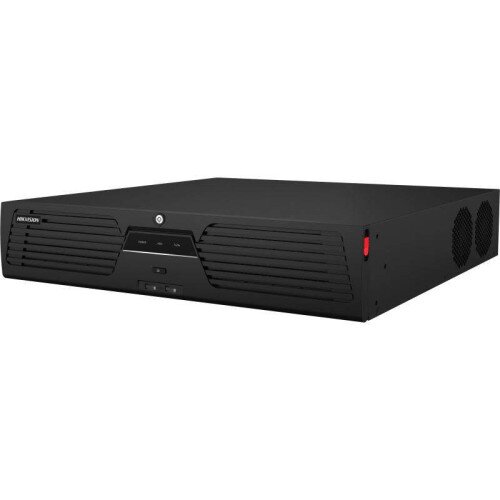

Hikvision DS-9664NI-M8 64-ch 2U Network Video Recorder
Hikvision DS-9664NI-M8 64-ch 2U Network Video Recorder Display Gallery Item 1

Hikvision DS-9664NI-M8 64-ch 2U Network Video Recorder Available Now

By: Hikvision

Model: DS-9664NI-M8

Sku: Q0D5DNXJNY

Be the first to review this product

Sign up for price alert

AED 7,589

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Video and Audio: IP Video Input: 64-ch / Incoming Bandwidth: 400 Mbps / Outgoing Bandwidth: 400 Mbps / HDMI 1 Output: 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz / HDMI 2 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz , When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. / VGA 1 Output 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz / VGA 2 Output: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz / Video Output Mode: HDMI and VGA provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output / CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 / Audio Output: 2-ch, RCA (Linear, 1 KΩ) / Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding: Decoding Format: H.265+/H.265/H.264+/H.264 / Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF / Synchronous playback: 16-ch / Decoding Capability: 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) / Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network: Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, UDP, RTP, RTCP / Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID: RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • Auxiliary Interface: Serial Interface: RS-485 (full-duplex), RS-232 / SATA: 8 SATA interfaces supporting hot-plug / eSATA: eSATA interface / Capacity: Up to 16 TB capacity for each disk / Alarm In/Out: 16/9 / USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 / Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device, The power will be turned on when the alarm output is triggered, The Ctrl 12V power is controlled by alarm output 9. / DC 12V: 12 VDC, 1 A power output
  • General: Power Supply: 100 to 240 VAC, 50 to 60 Hz / Consumption: ≤ 50 W (without HDD) / Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) / Working Humidity: 10% to 90% / Chassis: 2U chassis
Quantity:
  • Add to Wishlist
  • Add to Compare

64-ch 2U 4K NVR

  • Up to 64-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

In the Box

  • Hikvision DS-9664NI-M8 64-ch 2U Network Video Recorder
