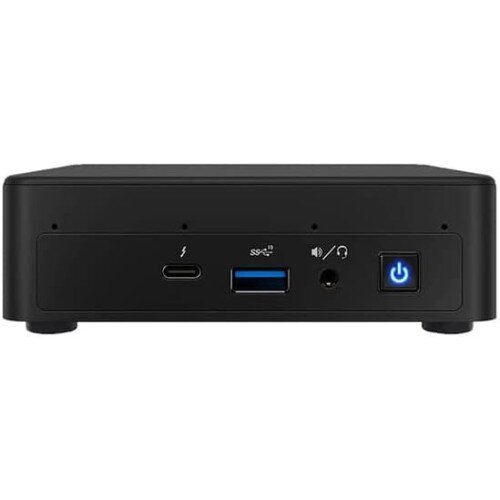

Intel NUC 11 Performance kit - NUC11PAHi3 - Best Deals Online!

Essentials

• Supported Operating Systems: Windows 11, 64-bit*, Windows 10, 64-bit*

CPU Specifications

• Total Cores: 2
• Total Threads: 4
• Max Turbo Frequency: 4.10 GHz

Memory & Storage

• Max Memory Size (dependent on memory type): 64 GB
• Memory Types: DDR4-3200 1.2V SO-DIMM
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 51.2 GB/s
• # of Memory Slots: 2
• ECC Memory Supported: No
• # of Internal Drives Supported: 2
• Removable Memory Card Slot: SDXC with UHS-II support
• M.2 Card Slot (storage): 22x80

I/O Specifications

• Graphics Output: HDMI 2.0b; USB-C (DP1.4); MiniDP 1.4
• # of Displays Supported: 4
• # of Thunderbolt Ports 2x Thunderbolt: 3
• # of USB Ports: 7
• USB Configuration: 2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers
• USB Revision: 2.0, 3.2 Gen2
• USB 2.0 Configuration (External + Internal): 0 + 1
• USB 3.0 Configuration (External + Internal): 2B 2F + 1
• Total # of SATA Ports: 2
• Max # of SATA 6.0 Gb/s Ports: 2
• Audio (back channel + front channel): 7.1 digital (HDMI mDP); L+R mic (F)
• Integrated LAN: Intel Ethernet Controller i225-V
• Integrated Wireless: Intel Wi-Fi 6 AX201
• Integrated Bluetooth: Yes
• Consumer Infrared Rx Sensor: Yes
• Additional Headers: CEC, USB3.1, USB2.0, FRONT_PANEL, RGB

Expansion Options

• PCI Express Revision: Gen4
• PCI Express Configurations: M.2 slot with PCIe X4 lanes

Advanced Technologies

• Intel HD Audio Technology: Yes
• Intel Rapid Storage Technology: Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® Virtualization Technology (VT-x): Yes

Security & Reliability

• Intel Platform Trust Technology (Intel® PTT): Yes
• TPM: No
• Intel AES New Instructions: Yes

In the Box

• Intel NUC 11 Performance kit - NUC11PAHi3
