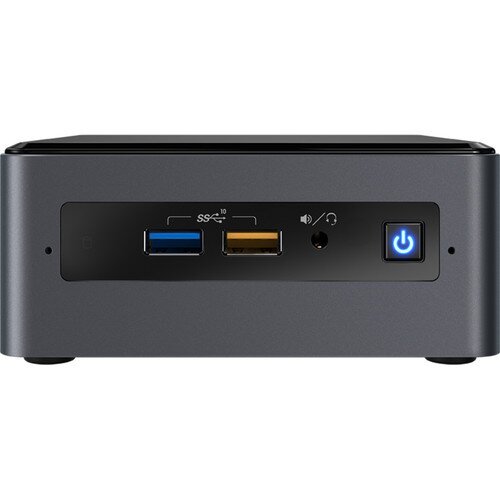

Intel NUC KIT NUC8I5BEH Mini-PC Barebone - Best Deals Online!

Model: BOXNUC8I5BEH1

Availability: Out of stock

Board Form Factor: UCFF (4" x 4")
Socket: Soldered-down BGA
Internal Drive Form Factor: M.2 and 2.5" Drive
# of Internal Drives Supported: 2
Lithography: 14 nm
TDP: 28 W
DC Input Voltage Supported: 12-19 VDC
Max Memory Size (dependent on memory type): 32 GB
Memory Types: DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels: 2
Max Memory Bandwidth: 38.4 GB/s
Max # of DIMMs: 2
ECC Memory Supported: No
Integrated Graphics: Yes
IGraphics Output HDMI: 2.0a; USB-C (DP1.2)
I# of Displays Supported: 3
PCI Express Revision: Gen3
PCI Express Configurations: M.2 slot with PCIe X4 lanes
Removable Memory Card Slot: microSDXC with UHS-I support
M.2 Card Slot (storage): 22x42/80
# of USB Ports: 6
USB Configuration: 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision: 2.0, 3.1 Gen2
USB 2.0 Configuration: (External + Internal) 0 + 2
USB 3.0 Configuration: (External + Internal) 2B 2F + 0
Total # of SATA Ports: 2
Max # of SATA 6.0 Gb/s Ports: 2
RAID Configuration: 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel): 7.1 digital (HDMI mDP); L+R mic (F)
Integrated LAN: Intel Ethernet Connection I219-V
Integrated Wireless: Intel Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth: Yes
Consumer Infrared Rx Sensor: Yes
Additional Headers: CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt: 3 Ports 1
