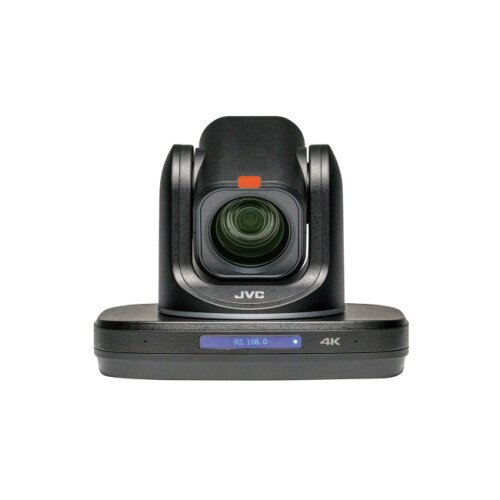

JVC KY-PZ510NBU Hevc Auto-Tracking Ptz Camera - Best Deals Online!

By: JVC

Model: KY-PZ510NBU

Sku: CNARK4FSU4

Availability: Out of stock New

Availability: Out of stock

  • 1/2,8 Inch CMOS: 1/2.8-inch CMOS/ Number of Sensors: 1/ Mega Pixels: 8.40/S/ N in dB: 55/ Min. Illumination: 0.5Lux/ Shutter speed: 1/30 to 1/10000
  • Lens mount: Internal/ Optical Zoom x times: 12/ Dynamic Zoom x times: 16/ Lens F Number: 1.8 to 3.7/ Lens ratio from / to: 3.4mm to 41.6mm/ Auto Focus: Yes
  • PAN Angle in degree +/-: 162.5/ PAN Speed with AC Adapter max degree/ sec: 80.5/ PAN Speed with POE+ max degree/sec: 80.5/ TILT Angle in degree: -30 to 90/ TILT Speed with AC Adapter max degree/sec: 49/ TILT Speed with POE+ max degree/sec: 49/ Preset Positions: 255
  • Recording Formats: Encoder:H.265/H.264/MJPEG/ Resolution 3840 x 2160: Yes, 60p, 50p, 29.97p, 25p , 23.98p/ Resolution 1920 x 1080: Yes, (60p/50p/30p/25p/24p / 1080i60/i50/ Resolution 1280 x720: Yes, 60p/50p/30p/25p/24p/ Audio Channels: 2
  • IP Section of the Product: IP Main Connection: Ethernet LAN RJ45 1000Base-T with POE+/ IP Connection supports: Ethernet/ IP Features Live-Streaming: Yes/ IP Features Remote: Yes, via RM-LP100 or Web-Browser no apps needed/ Video Compression Codecs: 3/ H.265 Codec: Yes/ H.264 Codec: Yes/ MJPEG Codec: Yes/ Live-Streaming Bitrates: 1~60 Mbit/s/ Live-Streaming Protocols: NDI|HX, SRT, RTMP, RTMPS, RTSP/ SRT Protocol: Yes/ NDI HX3 Protocol: Yes/ Live-Streaming Single cast: Yes/ Live-Streaming Multicast: Yes
  • Input / Output Connections: OUT HDSDI: Yes, 3G HDSDI/ OUT HDSDI Format max: 1080/60p,50p/ OUT HDMI: Yes/ OUT HDMI Format max: 2160/60p, 50p/ OUT Audio Line: Yes, 1 times 3.5mm mini jack/ IN Audio AUX: Yes, 1 times 3.5mm mini jack/ Build in Microphones: Yes/ PTZ Serial Interface RS-232C in/out: Yes, over 8 PIN mini DIN/ PTZ Supported Protocols: Serial, PelcoD, IP JVC, IP others
  • Power DC: Yes, 12 Volt or 42V to 57V POE+ over Network LAN/ Power consumption: 12W/ Operation Temperature in Celsius degrees: 0 to 40/ Storage Temperature in Celsius degrees: -40 to 60
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Five Auto Tracking Settings

Standard, Area, Stage, Wide Area and Fine Adjustment

"Subject Movement and Recognition Tracking Auto Tracking" now has five new function settings to provide intelligent operation for sophisticated and engaging productions.

In the Standard mode, you can set the headroom spacing above the subject.

In the Area mode, The camera captures the Area frame where the target subject is visible. When the subject moves to an adjacent Area, the camera pans to the new Area.

NDI HX3

The camera has the NDI HX3 mode which delivers maximum quality and near zero latency transmission at a reduced bandwidth compared to NDI High Bandwidth.

NDI SDK Version: NDI 5

This camera (built-in NDI HX) supports NDI 5. NDI 5 support Reliable UDP (RUDP) transmission protocol. RUDP ensure reliability through retransmission with high-speed communication, such as UDP.

Super-Wide 80-degree Field of View

Focal length is 3.47mm to 41.7mm (21.8 mm to 261.8mm, 35mm equivalent). Super-wide horizontal angle of view is 80° which is ideal for use in offices, classrooms, studios, event facilities, sports venues and houses of worship.

4K60p H.265/HEVC Streaming

Ultra-high resolution 4K60p streaming is ideal for viewing sports and events. Highly efficient H.265/HEVC compression technology also produces similar or better image quality than H.264 at 50% of the bitrate.

Multi-Slice Encoding Technology

Multi-slice encoding technology increases performance and efficiency while reducing latency to achieve optimal image quality of live transmissions in 4K60p HEVC mode.

  • 4K 60p50p streaming to YouTube: you can stream 4K(2160p60) from KY-PZ510/N to YouTube.
  • YUV 4:2:2 12bit: HDMI output supports YUV 4:2:2 12bit and RGB 4:4:4 8bit.
  • Save setup files: You can save the menu settings as a setup file on a PC
  • Multi-Camera synchronization with VITC and NTP
  • H.264/H.265/Motion JPEG and dual streaming

In the Box

  • JVC KY-PZ510NBU Hevc Auto-Tracking Ptz Camera
  • AC/DC Adapter
  • Power Cable
  • RS232 Cable
  • User Manual
  • Remote Control Unit
  • Ceiling Mount Bracket
