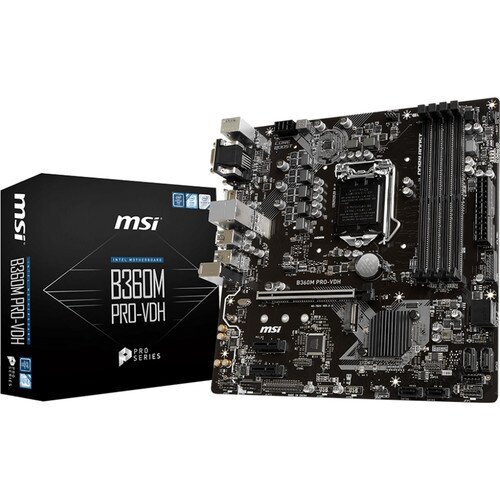

MSI B360M PRO-VDH Motherboard
MSI B360M PRO-VDH Motherboard Display Gallery Item 1
MSI B360M PRO-VDH Motherboard - 2 Display Gallery Item 2
MSI B360M PRO-VDH Motherboard - 3 Display Gallery Item 3
MSI B360M PRO-VDH Motherboard - 4 Display Gallery Item 4
MSI B360M PRO-VDH Motherboard - 5 Display Gallery Item 5

MSI B360M PRO-VDH Motherboard - Best Deals Online!

By: MSI

Model: B360M PRO-VDH

Sku: NCG8TLAG6K

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i7
  • SOCKET: 1151
  • CHIPSET: Intel B360 Chipset
  • DDR4 MEMORY: 2666/ 2400/ 2133 MHZ
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 64
  • PCI-E X16: 1
  • PCI-E GEN: Gen3
  • SATAIII: 6
  • PCI-E X1: 2
  • M.2 SLOT: 1
  • TPM (HEADER): 1
  • LAN: 10/100/10001
  • USB 3.1 PORTS(FRONT): 2(Gen1, Type A)
  • USB 3.1 PORTS (REAR): 4(Gen1, 3Type A & 1Type C)
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 2
  • SERIAL PORTS(FRONT): 1
  • PARALLEL PORT(FRONT): Y
  • AUDIO PORTS (REAR): 3Audio Jacks
  • DVI-D: 1
  • VGA: 1
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: MATX
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • PROCESSOR: Supports 8th Gen Intel Core, Pentium Gold and Celeron processors for Socket LGA1151
  • EMORY: 4 x DDR4 memory slots, support up to 64GB, Supports DDR4 2666/ 2400/ 2133 MHz Memory, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP)
  • SLOTS, PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots
  • ONBOARD GRAPHICS: VGA port, supports a maximum resolution of 2048x153650Hz, 2048x128060Hz, 1920x120060Hz, DVI-D port, supports a maximum resolution of 1920x120060Hz, HDMI port 1.4, supports a maximum resolution of 4096x216030Hz
  • STORAGE: Intel B360 Chipset: 6 x SATA 6Gb/s ports, M.2 slot (Key M), Support up to PCIe 3.0 x4 and SATA 6Gb/s, Supports 2242/ 2260 /2280/ 22110 storage devices Intel Optane Memory Ready, The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot, Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • USB: Intel B360 Chipset: 6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector), 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • Realtek ALC887 Codec: 7.1-Channel High Definition Audio
  • LAN, RTL8111H Gigabit LAN controller
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 2x 4-pin system fan connectors, Front panel audio connector, Parallel port connector, Serial port connector, 2x Front panel connectors, TPM module connector, Chassis Intrusion connector, Thunderbolt add-on card connector, Clear CMOS jumper
  • BACK PANEL PORTS, PS/2 mouse port, VGA port, HDMI port, LAN (RJ45) port, 2x USB 3.1 Gen1 ports, USB 3.1 Gen1 Type-A port, PS/2 keyboard port, DVI-D port, 2x USB 2.0 ports, USB 3.1 Gen1 Type-C por, 3x Audio Jacks
  • MOUNTING: 8 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Supports 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket Supports DDR4 Memory, up to 2666 MHz
  • DDR4 Boost : Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • Audio Boost :Reward your ears with studio grade sound quality for the most immersive audio experience
  • EZ Debug LED: Easiest way to troubleshoot
  • Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
  • PCI-E Steel Armor：Protecting VGA cards against bending and EMI
  • X-Boost: Great tool to boost your USB & Storage performance
  • Core Boost : With premium layout and fully digital power design to support more cores and provide better performance.

BUILT FOR CONTENT CREATORS AND PROFESSIONALS

This motherboard is designed to fully utilize the Intel Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

DDR4 Boost

Optimized traces and isolated memory circuitry

PCI-E Steel Armor

Protecting VGA cards against bending and EMI

Turbo M.2

NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4

Heavy plated heatsink

Leading heatsinks design, for maximum cooling

Audio Boost

Reward your ears with studio grade sound quality.

TUNING

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

QUALITY & PROTECTION

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

NETWORK

STABLE, SECURE & FAST NETWORKING

STABLE, SECURE & FAST NETWORKING

MEMORY

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.

COOLING

STAY COOL

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

MAXIMIZE YOUR USB DEVICE PERFORMANCE

STORAGE

BE THE FIRST TO BOOT UP IN THE MORNING

This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.

DISPLAY

ENJOY THE LATEST VIDEO STANDARDS

Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

BIOS

A USER-FRIENDLY BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.

In the Box

  • MSI B360M PRO-VDH Motherboard
