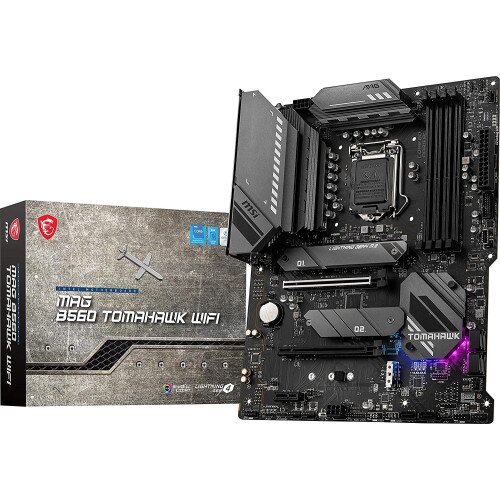

MSI MAG B560 TOMAHAWK WIFI Motherboard
MSI MAG B560 TOMAHAWK WIFI Motherboard Display Gallery Item 1
MSI MAG B560 TOMAHAWK WIFI Motherboard - 2 Display Gallery Item 2
MSI MAG B560 TOMAHAWK WIFI Motherboard - 3 Display Gallery Item 3
MSI MAG B560 TOMAHAWK WIFI Motherboard - 4 Display Gallery Item 4
MSI MAG B560 TOMAHAWK WIFI Motherboard - 5 Display Gallery Item 5
MSI MAG B560 TOMAHAWK WIFI Motherboard - 6 Display Gallery Item 6

MSI MAG B560 TOMAHAWK WIFI Motherboard - Best Deals Online!

By: MSI

Model: MAG B560 TOMAHAWK WIFI

Sku: ZYJ3J94WLP

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i9
  • SOCKET: 1200
  • CHIPSET: Intel B560 Chipset
  • DDR4 MEMORY: 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 128
  • PCI-E X16: 2
  • SATAIII: 6
  • PCI-E X1: 1
  • M.2 SLOT: 1
  • LAN: 1x Realtek 8125B 2.5G LAN
  • USB 3.2 PORTS (FRONT): 1(Gen 2, Type C), 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR): 1(Gen 2x2, Type C), 4(Gen 1, Type A)
  • WIFI & BLUETOOTH: Intel Wi-Fi 6E AX210
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 4
  • AUDIO PORTS (REAR): Realtek ALC897 Codec
  • DISPLAYPORT: 1
  • HDMI: 1
  • FORM FACTOR: ATX
  • CROSSFIRE: Y
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • PROCESSOR: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron, Processor socket LGA1200, Please go to intel.com for compatibility information.
  • CHIPSET: Intel B560 Chipset
  • MEMORY: 4 x DDR4 memory slots, support up to 128GB, Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR), Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR), Max overclocking frequency:, 1DPC 1R Max speed up to 5066 MHz, 1DPC 2R Max speed up to 4600+ MHz, 2DPC 1R Max speed up to 4266+ MHz, 2DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), Please refer www.msi.com for more information on compatible memory.
  • EXPANSION SLOT: 2x PCIe x16 slots, PCI_E1 (from CPU), Support up to PCIe 4.0 for 11th Gen Intel CPU, Support up to PCIe 3.0 for 10th Gen Intel CPU, PCI_E2 (from B560 chipset), Support up to PCIe 3.0 x4, PCIe 3.0 x1 slot (from B560 chipset)
  • ONBOARD GRAPHICS: HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed.
  • MULTI-GPU, Supports 2-Way AMD CrossFire Technology
  • STORAGE: 6x SATA 6Gb/s ports (from B560 chipset), 3x M.2 slots (Key M), M2_1 slot (from CPU), Available only on 11th Gen Intel CPU, Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (from B560 chipset), Supports up to PCIe 3.0 x4, Supports SATA up to 6Gb/s, Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset), Supports up to PCIe 3.0 x4, Supports 2242/ 2260/ 2280 storage devices,. Intel Optane Memory Ready, Supports Intel Smart Response Technology for Intel Core processors, SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot, Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • USB: Intel B560 Chipset: USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel), USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector), 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector), 4x USB 2.0 ports on the back panel/ Hub-GL850G: 4x USB 2.0 ports available through the internal connectors
  • Realtek ALC897 Codec: 7.1-Channel High Definition Audio, Supports S/PDIF output
  • LAN: Intel Wi-Fi 6E AX210: The Wireless module is pre-installed in the M.2 [Key-E] slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth 5.2, FIPS, FISMA, Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H, Bluetooth 5.2 will be ready in WIN10 21H1.
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 4-pin ATX 12V power connector, 6-pin PCIE power connector, 6x SATA 6Gb/s connectors, 3x M.2 slots (M-Key), USB 3.2 Gen 2 10Gbps Type-C port, USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin water-pump fan connector, 5x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, Chassis Intrusion connector, Clear CMOS jumper, TPM module connector, TBT connector (supports RTD3), Tuning Controller connector
  • BACK PANEL PORTS: USB 2.0, DisplayPort, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, HDMI, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF OUT
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

1-SECOND OVERCLOCKING!

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

MORE USER FRIENDLY ENHANCEMENTS

XL CLIP

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

EZ DEBUG LED

Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ LED CONTROL

A built-in LED button on the motherboard to control your light effect. Turn on/off your light in a second!

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

CERTIFIED FOR GAMING

MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

  • Automatically prioritizes games above other applications
  • Allows you to change applications' traffic priority
  • Allows you to customize bandwidth for each application

    • USB FRONT TYPE-C

    MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

    • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
    • Supports DDR4 Memory, up to 5066(OC) MHz
    • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
    • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
    • Audio Boost: Reward your ears with studio grade sound quality
    • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire

    In the Box

    • MSI MAG B560 TOMAHAWK WIFI Motherboard
    • Wi-Fi Antenna
    • 2 x SATA Cables
    • M.2 Screw & Standoff Sets
    • MSI Case Badge
    • MAG Stickers
