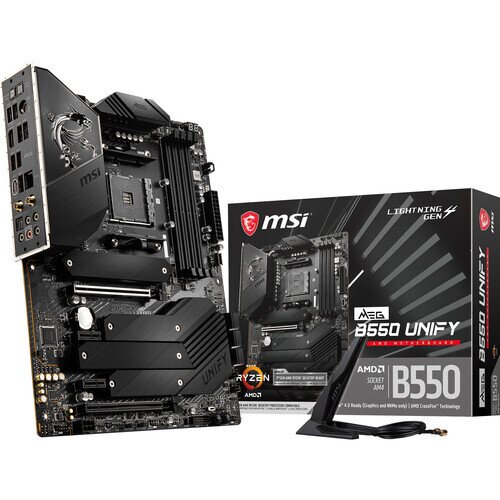

MSI MEG B550 UNIFY Motherboard - Best Deals Online!

By: MSI

Model: MEG B550 UNIFY

Sku: IQ94NKDAJV

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): RYZEN 9
  • SOCKET: AMD Socket AM4
  • CHIPSET: AMD B550 Chipset
  • DDR4 MEMORY: 4 DIMMs, Dual Channel DDR4-5100(OC) MHz+
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 128
  • PCI-E X16: 2
  • SATAIII: 6
  • PCI-E X1: 2
  • M.2 SLOT: 4
  • RAID: 0/1/10
  • LAN: Realtek 8125B-CG 2.5G LAN
  • USB 3.2 PORTS (FRONT): 1(Gen 2, Type C), 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR): 1(Gen 2, Type C), 3(Gen 2, Type A)
  • WIFI & BLUETOOTH: Intel Wi-Fi 6 AX200
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 4
  • AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek ALC1220P Codec)
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: ATX
  • CROSSFIRE: Y
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • CHIPSET: AMD B550 Chipset
  • MEMORY: 4x DDR4 memory slots, support up to 128GB 1, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, AMD Ryzen 4000 G-Series processors support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ (Max. 5600) MHz by A-XMP OC MODE, 3rd Gen AMD Ryzen processors supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE AMD Ryzen 4000 G-Series processors, 1DPC 1R max speed 5100 MHz (QVL), Max. 5600 MHz, 1DPC 2R max speed 4266 MHz, 2DPC 1R max speed 4400 MHz, 2DPC 2R max speed 3600 MHz, 3rd Gen AMD Ryzen processors, 1DPC 1R max speed 5100 MHz, 1DPC 2R max speed 4000 MHz, 2DPC 1R max speed 4000 MHz, 2DPC 2R max speed 3600 MHz, Dual channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory (non-ECC mode), Supports un-buffered memory/ Please refer www.msi.com for more information on compatible memory.
  • EXPANSION SLOTS: AMD Processor, 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1, AMD B550 Chipset, 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed 2, 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3)3, The supported specification depends on installed processor.The PCI_E4 slot will be unavailable, when installing M.2 SSD into M2_4.The both PCIe x1 slots will be unavailable after you install the M.2 SSD into M2_2 slot in Chipset support mode (default mode).
  • ONBOARD GRAPHICS: 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz 1 2, Maximum shared memory of 16GB, Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed.
  • MULTI-GPU: Supports 2-Way AMD CrossFire Technology
  • STORAGE: 6x SATA 6Gb/s ports 1 2, 4x M.2 slots (Key M), M2_1 slot (from CPU), Supports PCIe 4.0/ 3.0 x43, Supports SATA 6Gb/s, Supports 2280/ 22110 storage devices, M2_2 slot/ Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2, CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 3 Supports 2280 storage devices, M2_3 slot/ Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2, CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 3 Supports SATA 6Gb/s, Supports 2280/ 22110 storage devices, M2_4 slot/ Supports PCIe 3.0 x4, Supports 2280 storage devices, The SATA5 port will be unavailable when installing M.2 SATA SSD into M2_3.The SATA5 and SATA6 ports will be unavailable when installing M.2 PCIe SSD into M2_3 in Chipset support mode.M.2 specifications may vary depending on the CPU installed.
  • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • USB: AMD Processor, 4x USB 3.2 Gen 2 10Gbps ports(3 Type-A ports and 1 Type-C port) on the back panel, AMD B550 Chipset, USB 3.2 Gen 2 10Gbps Type-C internal connector, 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector, 4x USB 2.0 ports on the back channel, AMD B550 chipset + USB 2.0 Hubs, 4x USB 2.0 ports are available through the internal USB 2.0 connectors
  • AUDIO: Realtek ALC1220P Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
  • LAN: Realtek RTL8125B 2.5Gbps LAN controller
  • WIRELESS LAN & BLUETOOTH: Intel Wi-Fi 6 AX200, The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth 5.1
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 2x 8-pin ATX 12V power connector, 6-pin PCIE power connector, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key), USB 3.2 Gen 2 10Gbps Type-C port, USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports). 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin water-pump fan connector, 6x 4-pin system fan connectors, Front panel audio connector, 2x System panel connectors, Chassis Intrusion connector, 4-pin RGB LED connectors, 2x 3-pin RAINBOW LED connectors, 3-pin CORSAIR LED connector, TPM module connector, Clear CMOS jumper, Power button, Reset button
  • BACK PANEL PORTS: Clear CMOS Button, Keyboard / Mouse, USB 2.0 Ports, 2.5G LAN, Wi-Fi /Bluetooth, HD Audio Connectors, Flash BIOS Button, USB 2.0 Ports, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-A+C), Optical S/PDIF-Out
  • LED FEATURES: EZ LED Control switch, 2-Digit Debug Code LED, 4x EZ Debug LED
  • I/O CONTROLLER: NUVOTON NCT6687D-R Controller Chip
  • HARDWARE MONITOR: CPU/ System/ Chipset temperature detection, CPU/ System/ Pump fan speed detection, CPU/ System/ Pump fan speed control
  • FORM FACTOR: ATX Form Factor, 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

MASTER THE GAME

The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

OPTIMIZED STORAGE DESIGN

MEG B550 UNIFY series motherboard features exclusive onboard quadruple M.2 connectors for the maximum storage performance. The Industry leading design maximizes bandwidth to fully utilize high-end storage devices, provides multiple configurations for demanding gamers and power users.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

EASY OVERCLOCKING WITH A-XMP PROFILE

The A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

DRAGON CENTER

MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color

Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

GAME BOOST

Quickly overclock your CPU with a single button for more performance.

A-XMP

Choose from a preset A-XMP profile and automatically overclock compatible DDR memory.

M-FLASH

Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT

Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

MSI APP PLAYER

Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless gaming experience between mobile games and PC platform, and leverages customized features as specific keyboard lighting and better graphics with multi-task works.

* Hotkey backlighting will be available starting from Dragon Center ver. 2.3.1808.1001.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

Automatically prioritizes games above other applications, Allows you to change applications' traffic priority, Allows you to customize bandwidth for each application

HIGH DEFINITION ALC1220 AUDIO PROCESSOR

Supports DSD Super Audio CD playback & recording (64x better than regular CD quality)

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

GOLDEN AUDIO JACKS WITH S/PDIF

Keep your sound perfect by transmit your audio with pure digital signal

GET CLEARER ORDER WITH VOICE BOOST

Hear your teammates perfectly but still enjoy your audio. Voice Boost automatically reduces the game’s audio when teammates speak, and sets volume back when no one speaks.

ISOLATED AUDIO DESIGN

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

BOOST YOUR GAME EXPERIENCE WITH USB 3.2 GEN 2

Read and write your files over USB faster than ever. MSI MEG series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 10Gbps transferring speed by both USB 3.2 Gen 2 Type-A and Type-C.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, Dual Channel 5100(OC) MHz+
  • Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed.
  • Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power.
  • Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, AMD Turbo USB 3.2 GEN 2.
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.

In the Box

  • MSI MEG B550 UNIFY Motherboard
