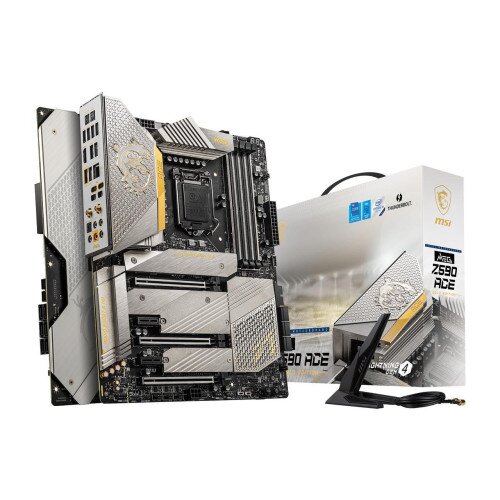

MSI MEG Z590 ACE Gold Edition Motherboard
MSI MEG Z590 ACE Gold Edition Motherboard Display Gallery Item 1
MSI MEG Z590 ACE Gold Edition Motherboard - 2 Display Gallery Item 2
MSI MEG Z590 ACE Gold Edition Motherboard - 3 Display Gallery Item 3
MSI MEG Z590 ACE Gold Edition Motherboard - 4 Display Gallery Item 4
MSI MEG Z590 ACE Gold Edition Motherboard - 5 Display Gallery Item 5

MSI MEG Z590 ACE Gold Edition Motherboard - Best Deals Online!

By: MSI

Model: MEG Z590 ACE Gold Edition

Sku: BOH42J0QW3

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i9
  • SOCKET: 1200
  • CHIPSET: Intel Z590 Chipset
  • DDR4 MEMORY: 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 128
  • PCI-E X16: 3
  • SATAIII: 6
  • PCI-E X1: 2
  • M.2 SLOT: 4
  • RAID: 0/1/5/10
  • LAN: Intel I225-V 2.5G LAN
  • USB 3.2 PORTS (FRONT): 1(Gen2, Type C), 2(Gen1, Type A)
  • USB 3.2 PORTS (REAR): 2(Gen2, Type A), 4(Gen1, Type A)
  • WIFI & BLUETOOTH: Intel Wi-Fi 6E AX210
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 2
  • AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek ALC4082 Codec + ESS SABRE9018Q2C combo DAC)
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: ATX
  • SLI: Y
  • CROSSFIRE: Y
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • PROCESSOR: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1, Processor socket LGA1200, Please go to intel.com for compatibility information.
  • CHIPSET: Intel Z590 Chipset
  • MEMORY: 4x DDR4 memory slots, support up to 128GB1, Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1, Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1, Max overclocking frequency:/ 1DPC 1R Max speed up to 5600 MHz, 1DPC 2R Max speed up to 4800+ MHz, 2DPC 1R Max speed up to 4400+ MHz, 2DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), Please refer to www.msi.com for more information on compatible memory
  • EXPANSION SLOTS: 3x PCIe x16 slots, Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, PCI_E1 & PCI_E3 slots (From CPU), Support up to PCIe 4.0 for 11th Gen Intel CPU, Support up to PCIe 3.0 for 10th Gen Intel CPU, PCI_E5 slot (From Z590 chipset), Supports up to PCIe 3.0, 2x PCIe 3.0 x1 slots (From Z590 chipset)
  • MULTI-GPU: Supports 2-Way NVIDIA SLI Technology, Supports 3-Way AMD CrossFire Technology
  • ONBOARD GRAPHICS: HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1, Available only on processors featuring integrated graphics.
  • THUNDERBOLT 4 Intel JHL8540 Thunderbolt 4 Controller
  • 2x Thunderbolt 4 (USB-C) ports on the back panel, Support up to 40Gbps transfer rate with Thunderbolt devices, Support up to 20Gbps transfer rate with USB4 devices, Support up to 10Gbps transfer rate with USB 3.2 devices, Support up to 5V/3A ,15W power charging, Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices, Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete, graphics card to the Mini DisplayPort Input port on the back panel)
  • STORAGE: 6x SATA 6Gb/s ports (from Z590 chipset), 4x M.2 slots (Key M), M2_1 slot (from CPU), Available only on 11th Gen Intel CPU, Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_21, M2_32, M2_4 slots (from Z590 chipset), M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x43, M2_2 & M2_3 support up to SATA 6Gb/s, M2_4 slot supports PCIe only., Supports 2242/ 2260/ 2280 storage devices, Intel Optane Memory Ready4, Supports Intel Smart Response Technology for Intel Core processors, SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is inserted.Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB: Intel Z590 Chipset, 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector), 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector), 2x USB 2.0 Type-A ports on the back panel, Hub-GL850G, 4x USB 2.0 ports through internal USB connectors
  • AUDIO: Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA, 7.1-Channel High Definition Audio, Supports S/PDIF output
  • LAN: Intel I225V 2.5Gbps LAN controller
  • WIFI & BLUETOOTH: Intel Wi-Fi 6E AX210, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth 5.22, FIPS, FISMA, Wi-Fi 6E 6GHz depend on country regulations support and will be ready in WIN10, 21H1.Bluetooth 5.2 will be ready in WIN10 21H1.
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 6-pin PCIE power connector, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key), USB 3.2 Gen 2 10Gbps Type-C connector, USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin water-pump fan connector, 6x 4-pin system fan connectors, Front panel audio connector, 2x System panel connectors, Chassis Intrusion connector, TPM module connector, Tuning Controller connector
  • LED FEATURES: EZ LED Control switch, 2-Digit Debug Code LED, 4x EZ Debug LED, 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 3-pin JCORSAIR LED connector
  • BACK PANEL PORTS: Clear CMOS Button, USB 3.2 Gen1 5Gbps (Type-A), USB 2.0, 2.5G LAN, Thunderbolt 4 40Gbps (Type-C), Wi-Fi / Bluetooth, HD Audio Connectors, Flash BIOS Button, HDMI, USB 3.2 Gen2 10Gbps (Type-A), Mini DisplayPort Input (for Thunderbolt passthrough), Optical S/PDIF-Out
  • MOUNTING: 9 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Sound Clearly. Tune Smartly.

The AI-powered noise cancellation is trained through deep neural network (DNN), the model is generated with more than 500 million data, simulate the way human brain works. When a sound is heard, the model automatically recognizes and separate vocal sound from background noises; hence, filtering out all the unwanted Noise.

  • Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Genuine 24K Gold: Premium aesthetics with a platinum color finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty.
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.

In the Box

  • MSI MEG Z590 ACE Gold Edition Motherboard
