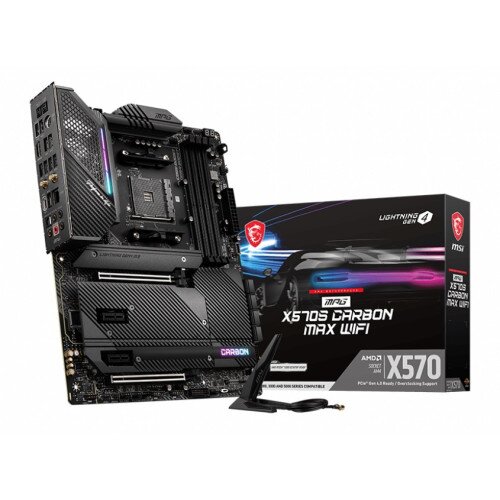

MSI MPG X570S CARBON MAX WIFI Motherboard - Best Deals Online!

By: MSI

Model: MPG X570S CARBON MAX WIFI

Sku: NCFKY6ELNB

Availability: Out of stock New

Availability: Out of stock

  • Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
  • Supports DDR4 Memory, up to 5300+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
  • Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
  • CPU (MAX SUPPORT): Ryzen 9
  • SOCKET : AM4
  • CHIPSET: AMD X570 Chipset
  • DDR4 MEMORY : 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz
  • MEMORY CHANNEL : Dual
  • DIMM SLOTS : 4
  • MAX MEMORY (GB) : 128
  • PCI-E X16 : 2
  • SATAIII: 8
  • PCI-E X1 : 2
  • M.2 SLOT : 4
  • RAID: 0/1/10
  • LAN : Realtek 8125B 2.5G LAN
  • USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 4(Gen 1, Type A)
  • USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
  • WIFI & BLUETOOTH : Intel Wi-Fi 6E AX210
  • USB 2.0 PORTS (FRONT) : 4
  • USB 2.0 PORTS (REAR) : 2
  • AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek ALC4080 Codec)
  • HDMI : 1
  • DIRECTX : 12
  • FORM FACTOR : ATX
  • CROSSFIRE: Y
  • OPERATING SYSTEM : Support for Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

AUTODETECT DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

14 + 2 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining dual power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

MORE FOR PERFORMANCE

LOAD-LINE CALIBRATION

What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.

DOUBLE POWER CONNECTORS

8+4 pin connectors deliver adequate power even for an overclocked multi-core CPU

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while high-loading operation.

1-SECOND OVERCLOCKING!

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

PRE-INSTALLED I/O SHIELD

Featuring the Pre-installed I/O Shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

MORE USER FRIENDLY GADGETS

Battery sticker, Cable labels and Case badge

Cleaning brush

USB drive

Screwdrivers

MORE USER FRIENDLY ENHANCEMENTS

XL CLIP

The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

EZ DEBUG LED

Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ LED CONTROL

A built-in LED button on the motherboard to control your light effect. Turn on/off your light in a second!

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

MORE RELIABLE CIRCUIT TRANSMISSION

6 PCB layers allows for higher bandwidth and faster transfer speeds. This is also beneficial for reliable circuit transmission.

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

CERTIFIED FOR GAMING

MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable.

WINDOWS 10 CERTIFIED

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The A-XMP memory profile has great improvement on performance and efficiency for X570. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

EASY OVERCLOCKING WITH A-XMP PROFILE

The A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

Automatically prioritizes games above other applications

Allows you to change applications' traffic priority

Allows you to customize bandwidth for each application

In the Box

  • MSI MPG X570S CARBON MAX WIFI Motherboard
