The MSI Overclocking motherboards are designed based on four principles:
Continuous implementation of professional overclockers' feedback
Continue MSI's leading position in power efficiency and stability
The best overclocking tools
Infuse the DNA of MSI's LIGHTNING graphics cards
OC Certified
Built with LIGHTNING DNA
Enhanced components
Enhanced power
Enhanced thermal design
Military Class components
Extreme OC socket design
OC PCB
Optimized overclocking BIOS
OC Essentials
DigitALL power PWM
OC Certified is a military class burn-in test for motherboards. Running Prime95 for over 24 hours with a highly overclocked CPU is already a stressing endeavor, but removing all airflow from the motherboard ensures that only the best motherboards survive. If a motherboard can survive this, it can survive any overclocking situation.
MSI Overclocking motherboards are equipped with all the necessary features to make sure you get the most out of your system. From the Enhanced PWM with a large amount of power phases and Thermal Design that give you the best stability, to all the easy features that ensure that you don't have to perform a lot of tricks to get great stability in your quest for performance.
The OC PCB used for the MSI overclocking motherboards has a completely new design in which 50% more layers are used compared to standard motherboards. This allows us to optimize all traces for overclocking. Power and signal traces are isolated, resulting in higher efficiency and performance and more features can be installed relatively close to each other without causing interference. Every MSI overclocking motherboard is tuned for better stability under extreme circumstances:
Increased number of PCB layers
Increased humidity resistance
Tight weave Fiberglass PCB
Increased ESD protection
DigitALL Power digitally steers and receives feedback through a DigitALL PWM controller. This allows for pinpoint voltage delivery and lower power consumption.
Besides inspiring visual awe the XPOWER Thermal Design was developed to deliver the highest cooling potential in the worst situation. Because it is optimized to work in low-airflow situations, it is the ideal cooling to use with your liquid cooling setup.
XPOWER thermal design
SuperPipe
Low airflow
Optimized design
Clear CPU space
Metal screws
What is more frustrating than not being able to properly fit your cooling solution on your motherboard? Through feedback from professional overclockers, extensive research, unique design and the use of Military Class 4 components, we were able to create a lot of space around the socket making sure you can fit any cooling solution you want. Having this much space also makes it easier to insulate the motherboard for use with LN2 or other extreme cooling solutions.
MSI engineers made sure you can enjoy high speed DDR4 compatibility. DDR4 brings higher memory speeds at even lower power usage as low as 1.2v.
DDR4 offers higher volume sticks, this means larger memory configurations are possible up to 128GB.
A black design I/O Cover with OC Series imprinted doesn't only look cool, but it also protects against Electro Magnetic Interference. Making sure whatever device you connect, you will always receive a pure signal.
Run into unstable situations when pushing your CPU to the limit? This occurs because the internal clocks are linked through the 100 MHz BCLK strap. Thanks to a integrated Clock Generator, MSI motherboards support more flexible BCLK adjustments, from 100 / 125 / 167 MHz straps.
Using these straps prevents system crashing while overclocking on the edge and opens doors to achieve the absolute maximum. The MSI X99 motherboards all come with the next generation Clock Generator offering even lower jitter and power consumption resulting in even higher stability under extreme conditions.
Whether it's for 24/7 overclocking use or breaking world records, the MSI Delid Die Guard helps with your air, water or subzero overclocking activities.
This solid mounting system makes it easier to mount a delidded CPU and helps to achieve lower CPU temperatures, making sure you can squeeze every MHz out of it. Whether you are a beginner in overclocking or a veteran, we hand you the tools to succeed.
Helps to lower CPU temperature
Easier and more stable fitting of cooling solution
Protecting the die of your CPU
Generate optimal mounting pressure
A small set of tools that are essential to get the best performance out of your motherboard. These features increase stability, assist in trouble shooting, allow you to keep your complete system in check and allow for simple management. This way you can keep your mind on overclocking.
Slow Mode helps to defeat booting issues when overclocking at extremely high CPU frequencies. Flicking the switch will temporary decrease CPU ratio to 12x, creating stability to successfully boot to Windows.
One-second overclocking by simply pressing the OC Genie button. OC Genie 4 now has the ability to switch between 2 gears.
A set of + and – buttons allows you to adjust your Base Clock in real time, even during benchmarking. The Direct OC software allows you to select 1 MHz or 0.1 MHz increments. The X99S XPOWER AC allows for even better control because it is equipped with a switch on the motherboard which allowed you to make the 1MHZ or 0.1Mhz increments. On top of that it also comes with 2 extra Direct OC buttons to increase the multiplier ratio.
A true factory reset! Holding this button for 2 seconds completely wipes your motherboard from all settings. The CLR CMOS button only limits itself to the BIOS/VRAM but this Complete Discharge button even removes information from the X99 PCH, a much needed button on the X99 platform.
Direct USB allows for faster and more convenient ways of saving scores, flashing the BIOS and installing drivers & software when overclocking on an open test bed.
The Direct USB connector also allows for easy pre-testing of your hardware prior to installing it in a PC case.
After MOA feedback we enhanced the V-Check Points with 2 extra ground connectors. This way overclockers can use 3 multi-meters at the same time.
The increased switching frequencies and incompatibilities lead to large deviations.
VCCIN: CPU Input Voltage
DDR01: Memory Voltage - Channel A/B
DDR23: Memory Voltage - Channel C/D
VPP01: Memory VPP Voltage - Channel A/B
VPP02: Memory VPP Voltage - Channel C/D
Core: CPU Core Voltage
GND: Ground
GND: Ground
GND: Ground

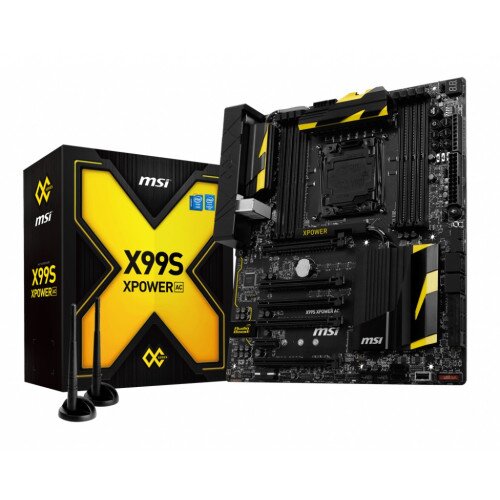

The X99S XPOWER AC motherboard supports 4-Way SLI / CrossFire.Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping off from your screen when running a NVIDIA SLI or AMD CrossFire setup.
When you are overclocking with LN2 with 4 VGA cards and want to switch to 3 or 2 cards you normally would have to remove the cards. However, with the LN2 pot on the motherboard and all the insulation, removing the card can be a big hassle. With MSI CeaseFire, it is very easy to disable one of the PCI-E x16 slots with a simple without the need of removing the cards.
SATA Express introduces a new solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 10 Gb/s.
Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is more than 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.
Turbo M.2 is the successor to M.2 10 Gb/s, offering 3 times more performance up to 32 Gb/s using Gen3 x4. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions. All latest generation Intel based MSI motherboards feature Turbo M.2 storage.
Military Class 4 is the next step in high quality components. The DrMOS II, Hi-C Cap, Super Ferrite Choke and Solid Caps will make sure that your PC runs more stable under extreme conditions.
DrMOS is the next-gen Mosfet which is used to deliver the power for the CPU. MSI DrMOS does not waste much power, stays cool and is more power efficient than other powersaving solutions. Because DrMOS is a 3-in-1 chip it delivers much more power with less components needed. This solution gives you the power to break world records.
With their aluminum core design, Dark CAP's have been a staple in high-end motherboard design and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.
A Hi-c CAP is a very small, but super-efficient capacitor. Besides ensuring enough spacing around a CPU socket to install large coolers, it also allows for 93% energy efficiency. Thanks to Hi-c CAP`s MSI mainboards are the most energy efficient in the market.
Super Ferrite Choke uses a Ferrite core that is Super-Permeable. This allows the Super Ferrite Choke to run at a 35 degree Celsius lower temperature, have a 30% higher current capacity, a 20% improvement in power efficiency and better overclocking power stability.
We put extra effort in increasing customer satisfaction. Our RMA rate has drastically decreased in the last few years. To achieve the highest quality the MSI Overclocking motherboards are developed by our most senior engineers on the most advanced production lines.
We are continuously improving our customer services, so in case you might run into a problem you can be assured we offer a fast response to your questions and hand you in depth information on the subject.
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our overclocking motherboards.
With MSI ECO Center you can physically cut the power to unused chips to save up to 19% power usage.
10% Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
Each and every I/O port is protected against the hazards of Electro Static Discharge.
All MSI motherboards comply with stringent American FCC regulations and reduce the impact of Electromagnetic Interference.
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
MSI Overclocking motherboards are equipped with advanced overclocking software tools to fine tune even the most in-depth OC settings with ease.
MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.
This lightweight overclocking tool doesn't need installation and doesn't occupy unnecessary system resources lowering system benchmark scores. With a single mouse click you have access to the most important overclocking features.
MSI Command Center integrates an unlimited RAMdisk with the retail value of $35. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD. There are options to load complete game images, you can speed up your browser or your page file which increases your whole game system performance.
When the MSI Overclocking motherboard detects a failure from hardware such as the CPU, it will shut down, prevent booting and protects other hardware from damage by disconnecting power to it. A red LED let's you know that overcurrent protection is active.
The MSI OC Pen Drive features a native driver pack for your MSI overclocking motherboard. You can install drivers faster, save and load OC Profiles, save and load the latest BIOS and much more. In addition, MSI OC Pen Driver has life-time warranty.
Entering a BIOS can be a frustrating job. Because nowadays motherboards boot Lightning fast, we added the GO2BIOS button. Simply push it before you start or restart your system and you'll go straight to the system BIOS when your motherboard powers on.
Always connected with Intel Gigabit LAN networking. Optimized for multimedia and gaming use to deliver a stable and fast network connection. Even when using LN2, to make sure you can upload your record-breaking scores.
