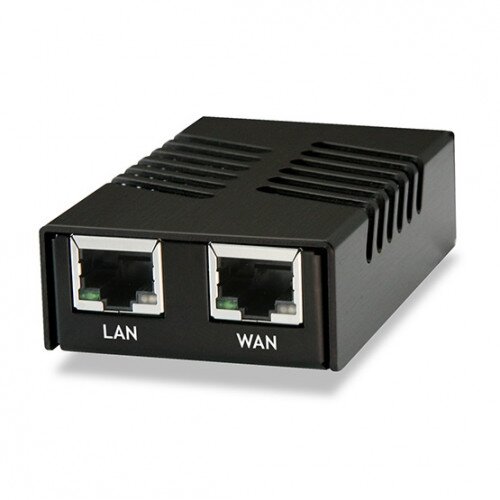

Netgate SG-1000 microFirewall Security Appliance - Black
Netgate SG-1000 microFirewall Security Appliance - Black Display Gallery Item 1
Netgate SG-1000 microFirewall Security Appliance - Black - 2 Display Gallery Item 2
Netgate SG-1000 microFirewall Security Appliance - Black - 3 Display Gallery Item 3
Netgate SG-1000 microFirewall Security Appliance - Black - 4 Display Gallery Item 4

Netgate SG-1000 microFirewall Security Appliance - Black Available Now

By: Netgate

Model: SG-1000-Black

Sku: V912XVHGS0

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: TI AM3352 ARM Cortex-A8 600 MHz, including crypto accelerator
  • CPU Cores: 1
  • Memory Options: 512MB DDR3 Non ECC
  • Storage Options: 4GB eMMC Flash on board
  • Network Interfaces: 2x 1GbE on RJ45 (switched)
  • USB Ports: 1x 2.0 OTG
  • Console Port: Micro USB
  • Max Active Connections: 200,000
  • Power: 5 VDC power input connector
  • Case: Desktop case, vented anodized aluminum available in red or black
  • Cooling: Passive
  • Operating Temperature: 0°C (32°F) to 50°C (122°F)
  • Certifications: CE, FCC, RoHS
  • Power Consumption: 2.5W (idle)
  • Support Options: Professional, Enterprise, and Enterprise Plus
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Netgate SG-1000 microFirewall is a cost-effective, state-of-the-art, ARM-based, pfSense Security Gateway appliance. The SG-1000 comes with dual 1Gbps Ethernet ports, enabling maximum throughput exceeding 100Mbps. The ARM Cortex-A8 in the TI AM3552 SoC and DDR3L RAM facilitate low-power consumption while maintaining performance. The SG-1000 comes in a lightweight anodized aluminum case. It’s credit-card sized footprint allows it to be easily tucked away, but you’ll be proud to show it off.

The Netgate SG-1000 microFirewall is inexpensive and purpose-built to run pfSense software. It can be deployed in many environments: Multi-dwelling units (MDU) such as apartments and dorm rooms, commercial-control applications (SCADA), and the more traditional small office / home office environments. It is also an ideal security gateway for the Internet of Things (IoT) applications such as remote monitoring applications for smart home/smart cities, commercial automation, energy management, agricultural, and health care.

EASY TO USE

  • Pre-loaded with pfSense software, ready to use right out of the box.
  • Small form-factor, so it fits about anywhere.
  • Easy GUI management. Manage pfSense settings through our web-based GUI.

GROWS WITH YOU

  • Flexible configuration and support for VPN, load balancing, reporting and monitoring.
  • Simple package management system to add powerful functions and features.

LOW TOTAL COST OF OWNERSHIP

  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. No preset limits on users, firewall rules, or IPsec tunnels.
  • Low power requirements to save money and be more eco-friendly.

COMMON USE CASES

  • Managed Service Providers (MSP) / Managed Security Service Provider (MSSP)
  • On-Premises Appliance for SMB
  • SOHO, Small Networks, Small Branch Office, Remote Employees
  • Many VPN Connections, Outsourcing / Home Office Remote User VPN
  • IoT Security Endpoint
  • Commercial Applications
  • Network Tap
  • IPMI Port Firewall
  • VPN Endpoint

SECURE REMOTE ACCESS

  • Connect via encrypted Virtual Private Networks (VPN) between offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with Amazon EC2 cloud instances.

SOFTWARE FEATURES

pfSense software is a free, open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

  • Stateful packet filtering firewall or pure router
  • Routing policy per gateway and per-rule for failover and load balancing
  • Transparent layer 2 firewall
  • Support for IPV6, NAT, BGP
  • Captive portal with MAC filtering, RADIUS support, etc
  • VPN: IPsec, OpenVPN, L2TP
  • Dynamic DNS client
  • Reporting and monitoring features with real time information

In the Box

  • Netgate SG-1000 microFirewall Security Appliance - Black
