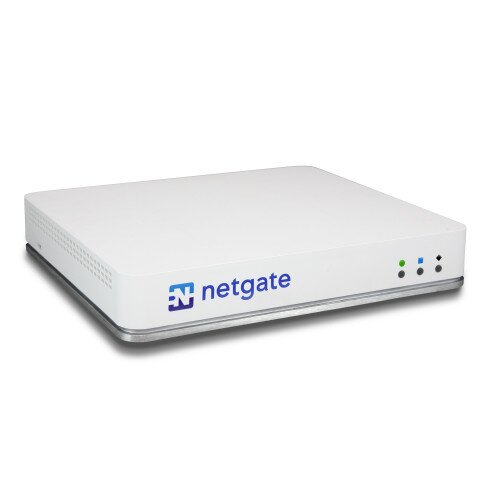

Buy Netgate SG-3100 pfSense Security Gateway Appliance - 8GB eMMC Now

By: Netgate

Model: SG-3100-US

Sku: X665SFJGQ8

Availability: Out of stock New

Availability: Out of stock

  • CPU ARM v7 Cortex-A9 1.6 GHz with NEON SIMD and FPU
  • CPU Cores Dual Core
  • Networking Two 1 Gigabit Ethernet Ports, configured as dual WAN or one WAN one LANplus four-port 1 gbps Marvell 88E6141 switch, uplinked at 2.5 gbps to the third port on the SoC for LAN.
  • Storage 8GB eMMC Flash on board
  • Memory 2GB DDR4L
  • Expansion:2x M.2 'B' key sockets (SSD, LTE), 1x M.2 'E' key socket (2230 form factor) for WiFi / Bluetooth, 1x miniPCIe (WiFi), microSIM
  • Console Port MiniUSB
  • USB Ports 1x 3.0 port
  • LED 3 user-controllable full color RGB LEDs
  • Enclosure Desktop 1.56" tall x 7" deep x 8" wide
  • Form Factor Standard mini-ITX 170mm x 170mm
  • Cooling Passive
  • Power External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 3.33A, threaded barrel connector
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The SG-3100 desktop system is a state of the art pfSense(R) Security Gateway appliance, featuring a dual core ARM design with crypto offload capability, a high level of I/O throughput and optimal performance per watt. This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.

LOW TOTAL COST OF OWNERSHIP

  • No artifical limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power requirements to help save you money.
  • No moving parts to wear out. This system is designed for a long deployment lifetime.

GROWS WITH YOU

  • From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.
  • Maximum Active Connections: 1.8 million

EASY GUI MANAGEMENT

  • Manage pfSense settings through our web-based GUI.
  • No fumbling with a command line interface or typing arcane commands.

SECURE REMOTE ACCESS

  • Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.

In the Box

  • Netgate SG-3100 pfSense Security Gateway Appliance
  • Power Cord
