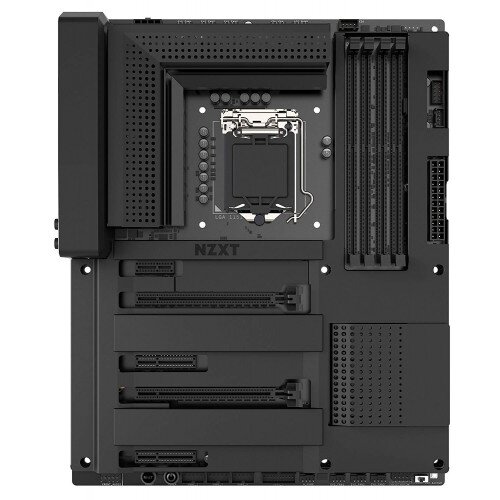

NZXT N7 Intel Z370 Gaming Motherboard - Matte Black Available Now

By: NZXT

Model: N7-Z37XT-B1

Sku: HPT46QH8PS

Availability: Out of stock New

Availability: Out of stock

  • CPU & Socket: LGA socket 1151 for Intel 8th Generation Core i7/ Core i5/ Core i3 Processors, Support Intel 14nm CPU, Support Intel Turbo Boost Technology 2.0
  • Chipset: Intel Z370
  • Memory: 4 x DIMM, Max. 64GB, DDR4, Dual-channel memory architecture, Support Intel Extreme Memory Profile (XMP)
  • Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology, Supports AMD 2-Way CrossFireX Technology
  • Integrated Graphics: Multi-VGA output support: HDMI/DisplayPort 1.2 ports, DisplayPort with max. resolution of 4096x2304 60Hz, HDMI with max. resolution of 4096x2160 24Hz, Maximum shared memory of 1024MB
  • LAN: Intel I219-V Gigabit LAN
  • Expansion Slots: 2 x PCIe 3.0 x16 (x16 or dual x8), 2 x PCIe 3.0 x4, 1 x PCIe 3.0 x1
  • Audio: Realtek ALC1220 Codec w/ Nichicon Gold Capacitors, 7.1-Channel High Definition Audio, 32-bit / 192KHz DAC
  • Operating System: Microsoft Windows 10 (64-bit)
  • Form Factor: ATX
  • Storage: Intel Z370 Express Chipset: 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode), 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only), 4 x SATA 6Gb/s ports, Support RAID 0/1/5/10, Supports Intel Smart Response Technology, Intel Rapid Storage Technology 15
  • Regulations & Certifications (EMC & Safety): FCC, CE, WHQL, ErP/EuP Ready
  • Rear I/O: 5 x USB 2.0 ports, 4 x USB 3.1 Gen 1 ports, 1 x DisplayPort 1.2, 1 x HDMI 1.4b, 1 x Clear CMOS button, 1 x LAN (RJ45) port, 1 x Optical S/PDIF Out port, 1 x 7.1-Channel Audio jacks
  • Internal I/O: 1 x 24-pin EATX power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin CPU FAN connector, 1 x 4-pin AIO PUMP connector, 1 x 4-pin W PUMP connector, 6 x 4-pin SYS FAN connectors (Up to 6W per channel), 3 x USB 2.0 header (Up to 6 USB 2.0 ports), 2 x USB 3.1 Gen1 header (Up to 4 USB 3.1 Gen 1 ports), 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 with M Key, (PCIe 3.0 x4 & SATA mode), 1 x M.2 Socket 3 with M Key, (PCIe 3.0 x4 mode only), 2 x RGB LED connectors, 1 x Noise detection module, 1 x Front panel audio connector, 1 x Power button, 1 x Reset button, 1 x ROM backup button, 1 x Dual BIOS switch
  • CPU & Socket: LGA socket 1151 for Intel 8th Generation Core i7/ Core i5/ Core i3 Processors, Support Intel 14nm CPU, Support Intel Turbo Boost Technology 2.0
  • Chipset: Intel Z370
  • Memory: 4 x DIMM, Max. 64GB, DDR4, Dual-channel memory architecture, Support Intel Extreme Memory Profile (XMP)
  • Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology, Supports AMD 2-Way CrossFireX Technology
  • Integrated Graphics: Multi-VGA output support: HDMI/DisplayPort 1.2 ports, DisplayPort with max. resolution of 4096x2304 60Hz, HDMI with max. resolution of 4096x2160 24Hz, Maximum shared memory of 1024MB
  • LAN: Intel I219-V Gigabit LAN
  • Expansion Slots: 2 x PCIe 3.0 x16 (x16 or dual x8), 2 x PCIe 3.0 x4, 1 x PCIe 3.0 x1
  • Audio: Realtek ALC1220 Codec w/ Nichicon Gold Capacitors, 7.1-Channel High Definition Audio, 32-bit / 192KHz DAC
  • Operating System: Microsoft Windows 10 (64-bit)
  • Form Factor: ATX
  • Storage: Intel Z370 Express Chipset: 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode), 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only), 4 x SATA 6Gb/s ports, Support RAID 0/1/5/10, Supports Intel Smart Response Technology, Intel Rapid Storage Technology 15
  • Regulations & Certifications (EMC & Safety): FCC, CE, WHQL, ErP/EuP Ready
  • Rear I/O: 5 x USB 2.0 ports, 4 x USB 3.1 Gen 1 ports, 1 x DisplayPort 1.2, 1 x HDMI 1.4b, 1 x Clear CMOS button, 1 x LAN (RJ45) port, 1 x Optical S/PDIF Out port, 1 x 7.1-Channel Audio jacks
  • Internal I/O: 1 x 24-pin EATX power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin CPU FAN connector, 1 x 4-pin AIO PUMP connector, 1 x 4-pin W PUMP connector, 6 x 4-pin SYS FAN connectors (Up to 6W per channel), 3 x USB 2.0 header (Up to 6 USB 2.0 ports), 2 x USB 3.1 Gen1 header (Up to 4 USB 3.1 Gen 1 ports), 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 with M Key, (PCIe 3.0 x4 & SATA mode), 1 x M.2 Socket 3 with M Key, (PCIe 3.0 x4 mode only), 2 x RGB LED connectors, 1 x Noise detection module, 1 x Front panel audio connector, 1 x Power button, 1 x Reset button, 1 x ROM backup button, 1 x Dual BIOS switch
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

N7 MOTHERBOARD

Leveraging more than 14 years of experience as professional PC builders, we’ve designed the latest N7 motherboard around Intel’s Z390 chipset and delivered everything you need to build a powerful, stunning gaming PC. All the essentials are included, along with built-in wireless connectivity, a digital fan controller and integrated RGB lighting channels. The all-metal motherboard cover perfectly matches the color and finish of your case, creating a visually seamless backdrop for your components.

N7 Z370

This N7 is built around Intel’s Z370 chipset and includes an all-metal cover for added protection, lighting and fan controls via CAM, and everything else to complete your build.

SMART CONTROLS

Everything you need is ready out of the box and elegantly controlled through CAM software. The N7 Z390 includes key features from our HUE 2 and GRID+ digital controllers allowing intuitive control for three RGB lighting channels and eight fan channels through CAM.

STUNNING CRAFTSMANSHIP

Build a PC gaming system that is truly yours. The N7’s unique all-metal cover provides a clean design that blends seamlessly with your case. Additional heatsink covers available separately in glossy blue, red, and purple.

A QUIETER SYSTEM

Our unique Adaptive Noise Reduction uses an on-board noise sensor to measure and learn the specifics of your system to find the ideal balance between fan speed and cooling. With up to a 40% reduction in fan noise level, you won’t need to waste time designing custom fan curves. Leveraging machine learning to improve its results, this will ensure your fan settings are always optimal, even if you change hardware.

In the Box

  • NZXT N7 Intel Z370 Gaming Motherboard - Matte Black
  • 4 x SATA data cables
  • 2 x 500mm LED connection cable
  • 2 x 300mm LED extension cable
  • Mounting screws
  • NZXT SLI bridge
  • I/O shield
  • User’s manual
