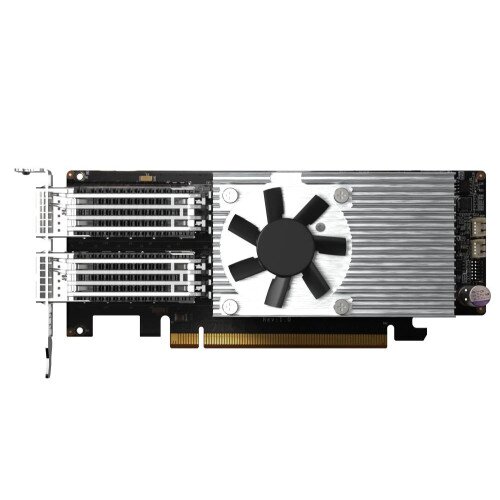

The dual-port QXG-100G2SF-E810 100 GbE network expansion card with Intel® Ethernet Controller E810 supports PCIe 4.0 and provides up to 100Gbps bandwidth to overcome performance bottlenecks. With iWARP/RDMA and SR-IOV support (available soon), the QXG-100G2SF-E810 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization and data centers. The QXG-100G2SF-E810 is a perfect match for all-flash storage to realize the highest performance potential for ever-demanding IT challenges.
The QXG-100G2SF-E810 supports FEC to overcome packet loss – a potentially common occurrence in fast, long-distance networks. FEC helps the receiving side detect and recover lost data to correct bit errors, thus ensuring reliable data transmission over “noisy” communication channels. With three FEC modes, you can use a suitable cable and switch to build an optimal network environment.
The QXG-100G2SF-E810 network expansion card can be connected to a switch either with a QSFP28 cable or a QSFP28 to (4) SFP28 cable. You can also configure network redundancy to achieve network failover via the switch for continuous service and high availability.
Use a 100GbE switch. Set one 100GbE connection as the main route and the other 100GbE as a backup route.
Use a 25GbE switch and two QSFP28 to (4) SFP28 cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 25GbE ports on the switch. Set a group of connections as the main route and the other as a backup route.
Use two QNAP 10GbE switches and two QSFP28 to (4) SFP28/SFP+ cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 10GbE ports on the switches. Set a group of connections as the main route and the other as a backup route.
Use a 25GbE switch and a QSFP28 to (4) SFP28 cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 25GbE ports on the switch. Note: The breakout cable must be connected to the 100GbE port nearest to the gold finger.
Supporting twenty-four (24) U.2 NVMe Gen 3 x4 SSDs, QNAP’s flagship TS-h2490FU NVMe all-flash storage features a PCIe Gen 4 x16 slot that enables the QXG-100G2SF-E810 to fully realize 100Gbps performance and eliminate bottlenecks in modern data centers, virtualization, cloud applications, and mission-critical backup/restore tasks.
Besides QNAP devices, the QXG-100G2SF-E810 supports many platforms (including Windows Server 2016 and 2019, and Linux/Ubuntu) allowing you to attain optimal business performance for a wider range of system applications and services. The higher bandwidth density with reduction in links helps reduce cabling footprint and operational costs.
Faster server connections within data centers accelerate data aggregation and operational performance.
Boost the productivity of compute-demanding tasks such as cloud computing, virtual machines, containers, and more.
Empower the movement of large files from surveillance streams, 4K/8K media, Internet of Things, and more.
