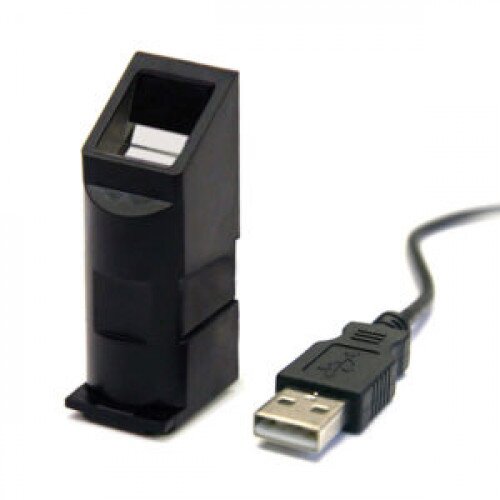

SecuGen SDU04P Fingerprint Sensor
SecuGen SDU04P Fingerprint Sensor Display Gallery Item 1

SecuGen SDU04P Fingerprint Sensor - Best Deals Online!

By: SecuGen

Model: SDU04P

Sku: BK862V91KO

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Image Resolution: 508 DPI
  • Image Size: 258 x 336 pixels
  • Platen Size: 14.6 mm x 17.9 mm
  • Sensing Area: 12.9 mm x 16.8 mm
  • Image Gray Scale: 256 levels (8-bit)
  • Light Source: LED
  • Smart Capture Speed: 0.2 ~ 0.8 seconds
  • Biometric Standards: INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 10)
  • Cable Length: 1500 mm
  • Operating Temperature: -20° ~ 65°C
  • Operating Humidity: 90% or less RH, noncondensing
  • Interface: USB 1.1 Full-Speed, USB 2.0 Hi-Speed
  • Supply Voltage: 5V (via USB)
  • Current Consumption (max): 150 mA
  • Compliance: FCC, CE, KC, RoHS, WHQL
  • Dust/Water Resistance: No
  • Supported Operating Systems: Windows 10 / 8.1 / 8 / 7, Windows Server 2016 / 2012 / 2008 R2, Android 3.1 and above, Linux
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

SecuGen’s classic SDU03P and SDU04P fingerprint sensors capture and transmit fingerprint data via USB. At the core of each SDU is SecuGen’s rugged fingerprint optic module that was built on time-tested, patented fingerprint technology that ensures high quality imaging and accuracy. The SDU04P is FBI Certified (PIV, FIPS 201, Mobile ID FAP 10 Compliant)

In the Box

  • SecuGen SDU03P Fingerprint Sensor
