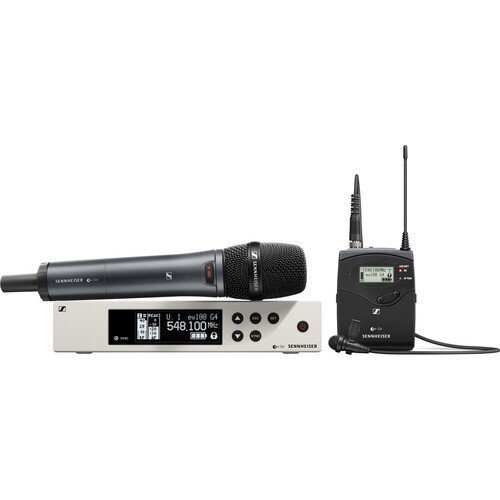

Versatile wireless system for those who sing, speak or play instruments. Set includes a dynamic handheld e 835 and easy clip-on omni-directional mic.
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. Dynamic handheld microphone e 835, robust bodypack transmitter and easy clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage.
- Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators.
- Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Reliability and performance
When taking any stage, large or small, a presenter needs to have just as much confidence in their equipment as they do in themselves. The ability to rely on technology is just as much a factor as the content itself when it comes to delivering a message to an audience. Enter the evolution wireless G4 100 Series—a wireless system built on the need for dependability that continues to deliver for presenters and A/V technicians time and time again.
Feature-rich and built to last
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.
Differences between the sets
The ME2, ME3 and ME4 are all great set options and vary depending on your needs. While the EW 100 G4-ME2 features our classic ME 2-II omnidirectional lavalier microphone, the ME4 offers a cardioid lavalier microphone in its place. The ME3 features the ME 3-II cardioid head-worn microphone which is ideal for getting the microphone capsule closer to the sound source in noisy or reverberant rooms. Lastly, the ME2/835-S is a combo set for those that need to switch between an omnidirectional lavalier and a cardioid handheld microphone depending on their application.
EM 100 G4
- Frequency range: A1: 470 - 516 MHz
- CompanderSennheiser HDX
- THD, total harmonic distortion ≤ 0.9 %
- Audio output 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Signal-to-noise ratio ≥ 110 dBA
- Switching bandwidth up to 42 MHz
- Peak deviation ±48 kHz
- Nominal deviation ±24 kHz
- Modulation Wideband FM
- Power supply12 V DC
- Antenna connector 2 BNC sockets
- Current consumption 300 mA
- Adjacent channel rejection Typically ≥ 65 dB
- Intermodulation attenuation Typically ≥ 65 dB
- RF sensitivity < 2.5 μV for 52 dBA eff S/N
- Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
- Temperature Range -10 °C to +55 °C
- Blocking ≥ 70 dB
- Compander Sennheiser HDX
- THD, total harmonic distortion ≤ 0.9 %
- Signal-to-noise ratio ≥ 110 dBA
- RF output power Max. 30 mW
- Switching bandwidth up to 42 MHz
- Peak deviation±48 kHz
- Nominal deviation±24 kHz
- Operating timeTypically 8 h
- Modulation Wideband FM
- Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
- Input impedance 40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage 3 Veff
- Powering 3 V battery / 2.4 V rechargeable battery
- AF frequency response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
- Temperature Range -10 °C to +55 °C
- Frequency stability ≤ ±15 ppm
- Compander Sennheiser HDX
- THD, total harmonic distortion ≤ 0.9 %
- Signal-to-noise ratio ≥ 110 dBA
- RF output power Max. 30 mW
- Switching bandwidth up to 42 MHz
- Peak deviation ±48 kHz
- Nominal deviation ±24 kHz
- Operating time Typically 8 h
- Modulation Wideband FM
- Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
- Input impedance 40 kΩ
- Max. Input voltage 3 Veff
- Powering 3 V battery / 2.4 V rechargeable battery
- AF frequency response 80 – 18,000 Hz
- Temperature Range -10 °C to +55 °C
- Frequency stability ≤ ±15 ppm
ME 2
- Connector 3.5 mm jack
- Frequency response 50 to 18,000 Hz (ME 2-II)
- Max. sound pressure level 130 dB
- Cable length approx. 1.60 m
- Transducer principle pre-polarized condensor microphone
- Sensitivity in free field, no load (1kHz) 20 mV/Pa
- Equivalent noise level 36 dB
- Sound pressure level (SPL) 154 dB SPL
- Transducer principle dynamic
- Pick-up pattern cardioid
- Sensitivity 2.1 mV/Pa
