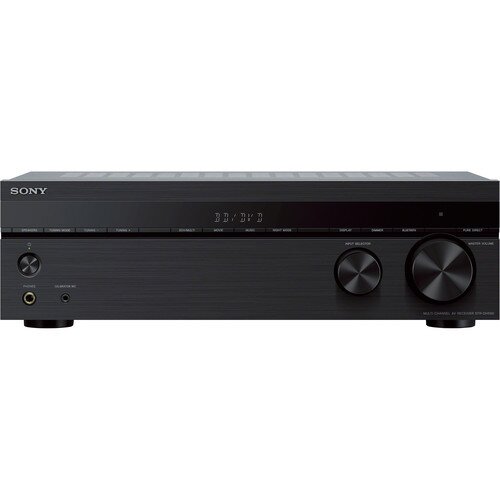

Decide on the speaker system you want to set up according to the number of speakers and subwoofers that you are using. The illustration and table below indicate the types of speakers that can be connected to the receiver and the general positions for placing the speakers.
This manual describes the installation, connection, and setting procedures using the typical speaker systems indicated in the table below as examples.
Set up the speakers and subwoofers in a room using the layout you prefer for your speaker system and connect them to the receiver. The speaker layout drawings on page 16 and 17 provide the ideal layout examples. You do not have to set up the speakers and subwoofers in exactly the same way as the layout examples. Adjust the speaker layout to optimally suit your room environment.
To fully enjoy theater-like multi-channel surround sound, you need five speakers (two front speakers, a center speaker, and two surround speakers) and a subwoofer.
If you select [Front Surround] for the sound field setting, you can enjoy surround effects equivalent to that of a 5.1-channel speaker system using only the two front speakers. Place the speakers as shown below and change the direction of the front speakers little by little to find the direction that provides the best surround effect.
Connect a TV to the HDMI TV OUT jack. You can set this receiver by operating the menu or the on-screen instructions displayed on the TV screen. When you connect a TV, you can watch a video and listen to the sound input from the device connected to the receiver on the TV. You can also listen to the TV sound from the speaker through the receiver.
Sony recommends that you use an HDMI cable made by Sony or another HDMI-authorized cable. Be sure to use a High Speed HDMI Cable with Ethernet. For video signals that require a high bandwidth such as 4K/60p 4:4:4, 4:2:2 and 4K/60p 4:2:0 10 bit etc., be sure to use a Premium High Speed HDMI Cable with Ethernet, which supports bandwidths up to 18 Gbps.
When you use high bandwidth video formats such as 4K/60p 4:4:4, 4:2:2 and 4K/60p4:2:0 10 bit, be sure to set the HDMI signal format.
We do not recommend using an HDMI-DVI conversion cable. If you connect an HDMI-DVIconversion cable to a DVI-D device, the sound and/or image may be lost. Connectseparate audio cables or digital connecting cables, then reassign the input jacks if thesound is not output correctly
All HDMI jacks on the receiver support ITU-R BT.2020 wide color spaces, Deep Color (DeepColour), and HDR (High Dynamic Range) contents pass-through.
The HDMI TV OUT jack supports Audio Return Channel (ARC).
BT.2020 color space is new wider color standard that is defined for ultra-high definitiontelevision systems.
HDR is an emerging video format that can display a wider range of brightness levels
