Designed for the most demanding hardcore enthusiasts, the Thermaltake R Series Radiators are optimized for maximum heat dispatching. They deliver an average heating load of 32℃-35℃ on each radiator. After brazing, the fin and tube connect to form a joint, thereby creating uniform heat transfer. By efficiently pulling heat away from the power-dissipating components, the radiators ensure component reliability.

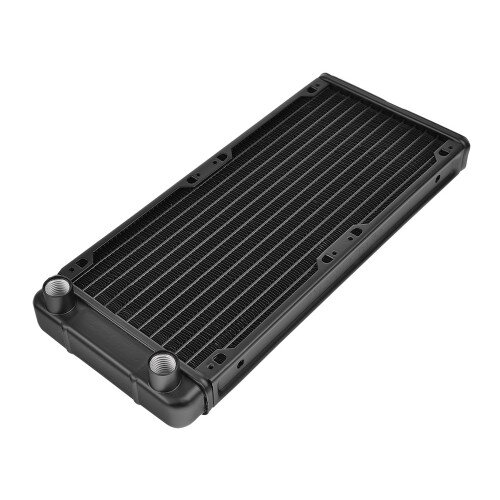

The Pacific R Series is a slim radiator with a 13-set flat tube design to increase heat transfer. Water flows down on the one side, then circulates back to the other side of the radiator.
Fin density is optimally designed to accommodate high air pressure. The cooling performance improves significantly with increased fan speed, offering exceptional cooling performance during operation. FPI (fin per inch): 17.
Without compromise, the Pacific R Radiator Series is designed with high-quality German aerospace-grade materials and constructed with zinc, the most common anti-corrosion agent. Although this protection will gradually degrade as the zinc corrodes away over time, it provides the best means to reduce electronic conductivity and can withstand scratches to the zinc layer. Corrosion potentials of aluminum alloy with zinc can be reduced by 55.6% after brazing.
An exceptional manufacturing process using high temperature brazing at 1022℉/550℃ sets Pacific R Radiator Series in a class of their own. This technique allows for impurities to be kept out of the brazing process, ensuring that full strength on all the connected areas is achieved.
The radiators are baked through a controlled atmosphere brazing line. The materials melt into each other to accomplish optimal thermal transfer from the tubes to the actual fins in order to attain better heat evacuation.
