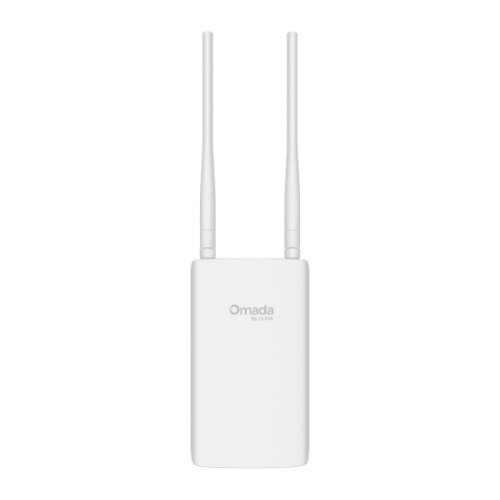

TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point Display Gallery Item 1
TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point - 2 Display Gallery Item 2
TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point - 3 Display Gallery Item 3
TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point - 4 Display Gallery Item 4

Buy TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point Now

By: TP-Link

Model: EAP603-Outdoor

Sku: VUD3MV5YOF

Be the first to review this product

Sign up for price alert

AED 649

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Interface: 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in, 1× Grounding Termina
  • Button: 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
  • Power Supply: 802.3at PoE • 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only)
  • Max. Power Consumption: 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. • Idle mode: 4.8W(PoE)
  • Antenna Wi-Fi: 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas *Note: The gains above are the single-antenna peak gains. IoT • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas
  • Bluetooth: Yes
  • Weatherproof Enclosure: IP66 for Wall Mount IP65 for Pole Mount
  • Mounting: Pole Mount (Kits included) • Wall Mount (Kits included)
  • Coverage: 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m)
  • Wireless Standards: 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax
  • Frequency: 5 GHz • 2.4 GHz
  • Signal Rate: 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps *Note: Country-Specific Restriction Apply
  • Wireless Security: ACL • MAC Filter, 802.1X Authentication • MAC-Based Authentication, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None, Radius Accounting, PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC), Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client, EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
  • Transmission Power Maximum transmit power: CE (ERIP): 2.4 GHz: 20 dBm, 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power), 2.4 GHz: 25 dBm, 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 Minimum transmit power CE (ERIP), 2.4 GHz: 7 dBm, 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power), 2.4 GHz: 4 dBm, 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 Adjustable power increment: 1 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations
  • Omada App Yes
  • Restore & Backup Yes
  • Firmware update via Web Yes
  • NTP Yes
  • Centralized Management Omada Hardware Controller, Omada Software Controller, Omada Central (Cloud-Based) , Omada App
  • Cloud Access Yes. Require the use of an Omada controller.
  • Email Alerts Yes
  • LED ON/OFF Control Yes
  • Management MAC Access Control Yes
  • SNMP v1, v2c, v3
  • SSH Yes
  • Web-based Management Yes
  • Environment: Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.
  • Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.
  • PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter).
  • Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
  • Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
  • Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.

Seamless Connectivity with Mesh and Roaming

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Designed for Outdoors

The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.

Works with Omada SDN for One-Click Setup

Omada SDN allows users to quickly set up the EAP603-Outdoor through automatic device identification and one-click adoption.

Empowering Businesses with Reliable Omada SDN Solutions

Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

In the Box

  • TP-Link EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
  • Passive PoE Adapter
  • Power Cord
  • Installation Guide
  • Mounting Kit
