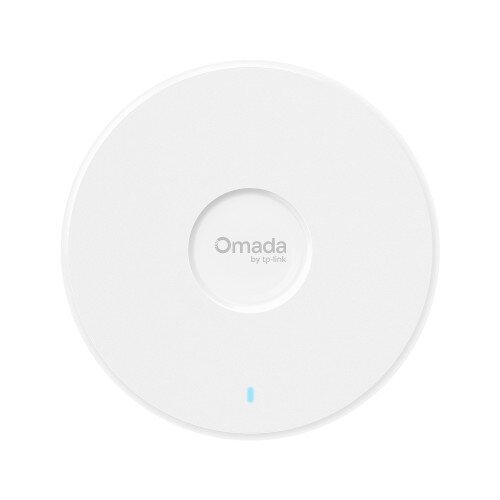

TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Display Gallery Item 1
TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - 2 Display Gallery Item 2
TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - 3 Display Gallery Item 3
TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - 4 Display Gallery Item 4

Buy TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Now

By: TP-Link

Model: EAP770

Sku: P2HAW3NR2C

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 2.5G Port: Unlock the full potential of Wi-Fi 7.
  • Tri-Band 6-Stream Wi-Fi 7
  • Speeds up to 11.0 Gbps
  • 2.5GbE Port
  • 802.3at PoE
  • Omada Mesh & Seamless Roaming
  • Centralized Management
  • Enhanced Security
  • Easy, Quick Setup
  • Secure Guest Network with up to 24 SSIDs
  • Boost Your Business with SMS Login
  • WPA3 for Worry-Free Open Public Networks
  • Rogue AP Detection
  • Interface: 1× 2.5G Ethernet Port
  • Button: Reset
  • Power Supply: 802.3at PoE or 12V/2.5A DC
  • Max. Power Consumption: 25.4 W (For PoE), 21.8 W (For DC)
  • Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 2× 5.0 dBi, 6 GHz: 2× 5.0 dBi
  • Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
  • Mounting: Ceiling / Wall /Junction Box Mounting (Kits Included)
  • Coverage: 1500 ft (140㎡)
  • Concurrent Clients: 380+
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 6 GHz, 5 GHz, and 2.4 GHz
  • Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
  • Wireless Functions: MLO, 4K-QAM, MU-MIMO, 320 MHz Bandwidth, Mesh, Seamless Roaming(802.11k/v/r), BBS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:24(8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
  • Wireless Security: Captive Portal Authentication, Access Control, Maximum number of MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power: ( 25dBm （2.4GHz）, ( 25dBm （5GHz）, ( 23dBm （6GHz）
  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes. Require the use of an Omada controller.
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Yes
  • Web-based Management: Yes
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

BE11000 Tri-Band Wi-Fi 7

5765 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz). Buffering will no longer be a problem.

Clear 6 GHz Band

Brings cleaner and wider band resources to your Wi-Fi.

320 MHz Bandwidth

Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.

Low Latency and Interference

Multi-Link Operation, and Multi-RUs ensure high performance of your network.

Advanced Functions

Supports centralized management, Mesh, and Seamless Roaming.

Optimized Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP770 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Empowering Businesses with Reliable Omada SDN Solutions Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

In the Box

  • TP-Link EAP770 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
  • Installation Guide
  • Power Adapter
  • Ceiling/Wall/Junction Box Mounting Kits
