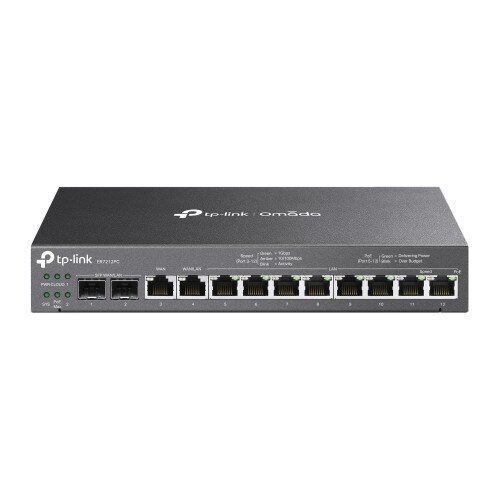

TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway
TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway Display Gallery Item 1
TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway - 2 Display Gallery Item 2
TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway - 3 Display Gallery Item 3
TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway - 4 Display Gallery Item 4

TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway - Best Deals Online!

By: TP-Link

Model: ER7212PC

Sku: ACM7D6UJOQ

Be the first to review this product

Sign up for price alert

AED 1,439

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • 3-in-1 Compact Gateway
  • Up to 4 WAN Ports
  • Centralized Management for up to 10 EAPs
  • Fanless Silent Design
  • 110W PoE+ Budget*
  • High-Security VPN
  • Easy Installation and Management
  • Omada App for Easy Use
  • Fanless Design
  • Silent Operation
  • Access Control: Source/Destination IP Based Access Control
  • Filtering: URL Filtering
  • ARP Inspection: -
  • Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN
  • Standards and Protocols : IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
  • Interface: 2 Gigabit SFP WAN/LAN ports, 1 Gigabit WAN port, 1 Gigabit LAN/WAN port, 8 Gigabit LAN ports
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m),
  • Fan Quantity: Fanless
  • Button: Reset Button
  • Power Supply: 53.5VDC/2.43A Adapter
  • PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
  • Flash: 8Mb Nor + 4 GB EMMC
  • DRAM: 1 GB DDR3
  • LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Desktop/Wall-mount
  • Max. Power Consumption: 133.2W with PoE Max, 13.88W without PoE
  • Concurrent Session: 24,980
  • New Sessions /Second: 1,900
  • NAT (Static IP): 935.5 Mbps / 942.1 Mbps
  • NAT(DHCP): 940.2 Mbps / 941.7 Mbps
  • NAT(PPPoE): 913.1 Mbps / 935.2 Mbps
  • NAT (L2TP): 545.0 Mbps / 912.7 Mbps
  • NAT (PPTP): 523.0 Mbps / 912.8 Mbps
  • IPsec VPN Throughput (AES256): 168.5 Mbps
  • IPsec VPN Throughput AES256:: 168.5 Mbps
  • OpenVPN: 34 Mbps
  • L2TP VPN Throughput: Unencrypted: 845.3 Mbps
  • Encrypted: 333.2 Mbps
  • PPTP VPN Throughput: Unencrypted: 1012.6 Mbps
  • Encrypted: 401.4 Mbps
  • WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
  • MAC Clone: Modify WAN MAC Address
  • DHCP: DHCP Server: DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
  • IPv6: support
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy
  • Access Control: IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing: Static Routing, Policy Routing
  • Bandwidth Control: IP/Port-based Bandwidth Control
  • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection
  • NAT bull: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Session Limit: IP-based Session Limit
  • IPsec VPN: 20 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, AES128, AES192, AES256 Encryption Algorithm, IKE v1/v2, SHA1, SHA2 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
  • PPTP VPN: PPTP VPN Server, PPTP VPN Client (10), 16 Tunnels, PPTP with MPPE Encryption
  • L2TP VPN: L2TP VPN Server, L2TP VPN Client (10), 16 Tunnels, L2TP over IPSec OpenVPN: OpenVPN Server, OpenVPN Client (10), 16 OpenVPN Tunnels
  • Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Sever, External Portal Sever
  • Omada App: Yes
  • Centralized Management : Management of up to 2 Omada switches, and 10 Omada access points
  • Cloud Access: Yes
  • Service: Dynamic DNS (Dyndns, No-IP)
  • Maintenance: Web Management Interface: Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Syslog Support,.
Quantity:
  • Add to Wishlist
  • Add to Compare

3-in-1 Gateway

Integrates 8× PoE+ ports and centralized management capability. Up to 10 EAPs can be centrally managed.

  • Up to 12× Gigabit ports bring high-speed network.
  • Up to 4× WAN Ethernet ports for a stable network.
  • Centralized Management: Cloud access and the Omada app for easy management.
  • Highly Secure VPN: Supports IPsec VPN/ OpenVPN / L2TP / PPTP VPN.§
  • Easy Installation: Fanless and compact design for desktop and wall mounting.

Simplify Networking Begins with the 3-in-1 Integrated Gateway

The ER7212PC is a VPN Gateway that integrates 8× PoE+ ports and centralized management capability. Connect to Omada access points and PoE-supported devices with ease.

Support centralized management for up to 10 Omada access points and 2 Omada switches, Support hybrid cloud technology to remotely control the whole network anywhere, anytime.

In the Box

  • TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Gateway
  • Power Adapter
  • Power Cord
  • Quick Installation Guide
