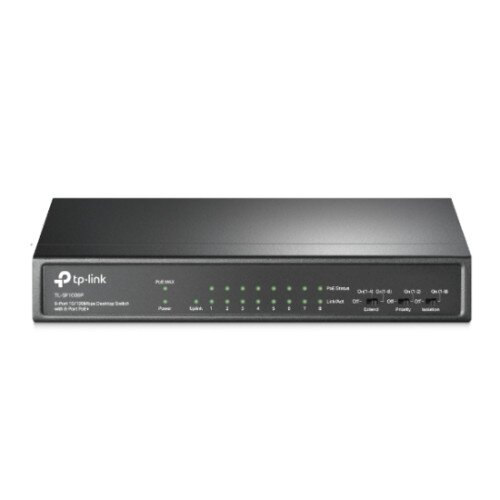

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Display Gallery Item 1
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 2 Display Gallery Item 2
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 3 Display Gallery Item 3
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 4 Display Gallery Item 4
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 5 Display Gallery Item 5
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 6 Display Gallery Item 6
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 7 Display Gallery Item 7
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 8 Display Gallery Item 8

Buy TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Now

By: TP-Link

Model: TL-SF1009P

Sku: Z8H8LSNV8C

Be the first to review this product

Sign up for price alert

AED 449

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • 67 W PoE Budget
  • Plug and Play
  • Transmission Distance up to 250 m
  • One-Click Priority Mode
  • Intelligent Power Management
  • Isolation Mode for Security
  • Durable Metal Casing
  • Interface: 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports), AUTO Negotiation, AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • External Power Supply: External Power Adapter (Output: 53.5VDC / 1.3A)
  • Packet Forwarding Rate: 1.3392 Mpps
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–8, Power Supply: 65 W
  • Mac Address Table: 2K
  • Jumbo Frame: 2 KB
  • Switching Capacity: 1.8 Gbps
  • Max Power Consumption: 3.6 (no PD connected), 77.1 (with 65 W PD connected)
  • Max Heat Dissipation: 12.3 BTU/h (no PD connected), 262.8 BTU/h (with 65 W PD connected)
  • Transmission Method: Store-And-Forward
  • Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1–2), Isolation Mode Button (Ports 1–8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
  • Environment: Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • 9× 10/100 Mbps RJ45 ports
  • 8× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for 8 PoE ports
  • Up to 250 m data and power transmitting range under Extend Mode
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play with no configuration required

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance —Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

One-Click Traffic Separation for Ports 1-8

With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

In the Box

  • TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
  • Power Adapter
  • Installation Guide
