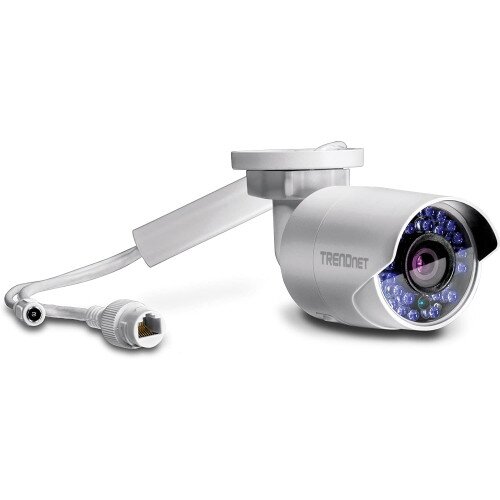

TRENDnet Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera
TRENDnet Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera Display Gallery Item 1
TRENDnet Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera - 2 Display Gallery Item 2
TRENDnet Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera - 3 Display Gallery Item 3

Buy TRENDnet Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera Now

By: TRENDnet

Model: TV-IP322WI

Sku: RSZJ7ANSIU

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Lens: Focal length: 4 mm, Focal depth: 20 cm+, Aperture: F2.0, Board lens, Sensor: 1/3" progressive scan CMOS
  • Viewing Angle: Horizontal: 71.6°, Vertical: 52°, Diagonal: 92°
  • Zoom: User-defined digital zoom
  • Minimum Illumination: IR off: 0.028 lux, IR on: 0 lux, IR Wavelength: 850nm, 30 meter IR illumination distance, Smart IR reduces close object overexposure
  • Video: D-WDR: 0-100 scale, 3D Digital Noise Reduction (DNR), Shutter speed: 1/3 - 1/100,000, H.264: 1280 x 960 up to 30 fps, MJPEG: 704 x 480 up to 30 fps
  • Hardware Standards: IEEE 802.1X, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Device Interface: 10/100 Mbps PoE port, Power port (for wireless installations), Integrated adjustable mounting base, MicroSD card slot (up to 64 GB), WPS button, Reset button, LED indicator
  • Frequency: 2.412 – 2.483 GHz
  • Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
  • Antenna Gain: Built-in 3dBi
  • Encryption: 64/128-bit, WPA/WPA2-PSK
  • Data Rate: 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 150 Mbps
  • Output Power: 802.11b: 17 ± 1.5 dBm (typical), 802.11g: 14 ± 1.5 dBm (typical), 802.11n: 12.5 ± 1.5 dBm (typical)
  • Receiving Sensitivity: 802.11b: -90 dBm at 11 Mbps, 802.11g: -75 dBm at 54 Mbps, 802.11n: -74 dBm at 150 Mbps
  • Channel: 1-11 (FCC), 1-13 (ETSI)
  • Wireless Range: 50 Meter (depends on the environment)
  • Housing: Weather rating: IP66
  • Network Protocol: IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), QoS, IGMP, Bonjour, NFS, SMB/CIFS, HTTP, HTTPS, PPPoE, UPnP, RTSP, RTP, RTCP, SSL
  • Operating Temperature: -30 – 60 °C (-22 – 140 °F)
  • Operating Humidity: Max. 95% non-condensing
  • Certifications: CE, FCC, UL 60950
  • Power: Input: 100 – 240 V 50/60 Hz 0.3 A, Output: 12 V 1 A, Consumption: 7 Watts max. PoE: 802.3af
  • TRENDnetView Pro Software: Supports up to 32 TRENDnet cameras, Multiple language support, Set recording options (motion detection, schedule, event trigger), Search and playback, Custom viewing modes and options, Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
  • TRENDnet IPView App: Free iOS and Android™ app, View your camera on your mobile device, Take snapshots, Zoom
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 1.3 Megapixel HD resolution (960p)
  • Connect to a WiFi N or PoE network
  • Compact IP66 weather rated housing
  • Night vision up to 30 meters (100 ft.)
  • Program motion detection recording and email alerts
  • MicroSD card slot (up to 64 GB)
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support

TRENDnet's Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera, model TV-IP322WI, provides powerful 1.3 megapixel night vision in complete darkness for up to 30 meters (100 ft.). This ultra-compact camera is outdoor ready with an IP66 weather rated housing, embedded WiFi N, and a MicroSD card slot. It comes with a free iOS® and Android™ mobile app and complimentary pro-grade software to manage up to 32 TRENDnet cameras.

WiFi or PoE

The ability to connect the camera to an existing WiFi (2.4 GHz) or PoE network offers installation flexibility.

Day/Night HD Surveillance

960p video (1.3 Megapixel) at 30 fps in H.264 compression and 30 meter rated night vision provide 24 hour surveillance.

Outdoor Ready

Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 60 °C (-22 – 140 °F).

1.3 Megapixel

Record up to 1280 x 960 pixel video (960p) at 30 fps in H.264 compression

PoE

Supports a Power over Ethernet (IEEE 802.3af) network connection for an optional PoE installation

Smart IR

Dynamic IR adjustment optimizes night visibility

Motion Detection

Create motion detection windows with separate sensitivity settings and event triggers

ONVIF

ONVIF Profile S compliant

Adjustable Bracket

Adjustable integrated mounting bracket provides installation flexibility

Night Vision

Night vision up to 30 meters (100 ft.) in complete darkness

Outdoor Ready

Outdoor IP66 weather rated and an operating temperature range of -30 – 60 °C (-22 – 140 °F)

D-WDR

Digital Wide Dynamic Range improves video quality in high contrast lighting environments

Recording Schedule

Define a weekly recording schedule with a mixture of continuous and motion detection recording

Free Apps

See live video on a mobile device with free iOS® and Android™ apps

WiFi N

Network the camera to an existing Wireless N (2.4 GHz) network

Storage

Store video to a MicroSD (SDHC, SDXC) card up to 64 GB (sold separately) or set up SMB or FTP Server storage

Advanced Playback

Advanced in-camera archived video review functionality

IPv6

IPv6 support

Complimentary Software

Complimentary pro-grade software to manage up to 32 TRENDnet cameras

In the Box

  • TRENDnet Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera
  • CD-ROM (Utility, Software & User's Guide)
  • Camera mounting hardware
  • Power adapter (12V 1A)
  • Network Cable (2 m / 6.5 ft.)
  • Quick Installation Guide
