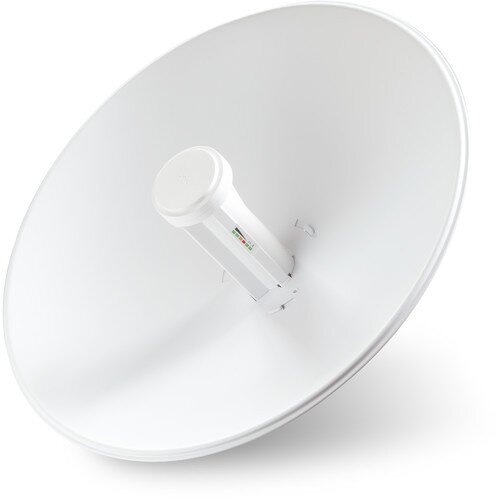

Ubiquiti AirMAX PowerBeamM 5 GHz 400 mm Bridge
Ubiquiti AirMAX PowerBeamM 5 GHz 400 mm Bridge Display Gallery Item 1

Ubiquiti AirMAX PowerBeamM 5 GHz 400 mm Bridge - Best Deals Online!

By: Ubiquiti

Model: PBE-M5-400-US

Sku: 3JAZUEA3O3

Be the first to review this product

Sign up for price alert

AED 1,319

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Enclosure material: UV-stabilized plastic
  • Mounting: Pole mount kit
  • Wind survivability: 200 km/h (125 mph)
  • Wind loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph)
  • Networking interface: GbE RJ45 port
  • Power method: Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
  • Power supply: 24V, 0.5A gigabit PoE adapter (Included)
  • Supported voltage range: 20–27V DC
  • Max. power consumption: 8W
  • Max. TX power: 26 dBm
  • Gain: 25 dBi
  • ESD/EMP protection: Air/contact: ± 24 kV
  • LEDs: Power, LAN, (4) WLAN
  • Signal Strength LEDs: Software-adjustable to correspond to custom RSSI levels
  • RoHS compliance: Yes
  • Salt fog test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
  • Vibration test: IEC 68-2-6
  • Temperature shock test: IEC 68-2-14
  • UV test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
  • Wind-driven rain test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5
  • Ambient operating temperature: -40 to 70° C (-40 to 158° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Gain: 22 dBi
  • Channel sizes: 5/8/10/20/30/40 MHz
  • Polarization: Dual linear
Quantity:
  • Add to Wishlist
  • Add to Compare

5 GHz, 25 dBi bridge with 150+ Mbps throughput.

  • 5 GHz, 25+ km link range
  • 150+ Mbps throughput
  • Improved mounting

In the Box

  • Ubiquiti AirMAX PowerBeamM 5 GHz 300 mm Bridge
  • Reflector
  • Antenna Feed
  • Rear Housing
  • Dish Bracket
  • Pole Clamp
  • U-Bolt
  • Flange Nuts (Qty. 2)
  • Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • Power Cord
  • Quick Start Guide
