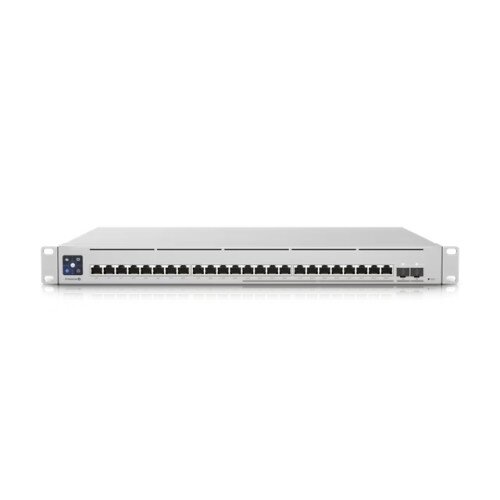

Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output
Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output Display Gallery Item 1
Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output - 2 Display Gallery Item 2
Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output - 3 Display Gallery Item 3
Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output - 4 Display Gallery Item 4
Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output - 5 Display Gallery Item 5
Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output - 6 Display Gallery Item 6

Buy Ubiquiti Enterprise 24 PoE (Gen1) 24-Port, Layer 3 Network Switch with 2.5 GbE PoE+ Output Now

By: Ubiquiti

Model: USW-Enterprise-24-PoE (400W)

Sku: ZBD0OWTS2K

Be the first to review this product

Sign up for price alert

AED 4,599

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Port Layout:1 GbE RJ45: 12 (All PoE+), (1G/100M/10M), 2.5 GbE RJ45: 12 (All PoE+), (2.5G/1G/100M/10M), 10G SFP+: 2
  • Max. PoE Output: Up to PoE+, Total PoE Availability: 400W, Redundancy: DC Power Backup, Layer 3: Yes, Form Factor: Rack mount (1U)
  • Switching Capacity: 124 Gbps, Total Non-Blocking Throughput: 62 Gbps, Forwarding Rate: 92 Mpps, Supported VLANs: 1,000, MAC Address Table Size: 16,000
  • L3 Table Size: ARP Entries: 4,000, IPv4 Routes: 1,000, Packet Buffer Size: 2 MB
  • DHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes,
  • LACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes, Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes,
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes, MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes,
  • Flow Control: Yes, Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes,
  • MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes, LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes
  • PoE Ports: PoE+: 24, Max. PoE Wattage per Port by PSE: PoE+: 32W, Max. Power Consumption: 60W (Excluding PoE Output), 460W (Including PoE Output)
  • Power Method: (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input, Power Input Method: AC input, Power Supply: AC/DC, internal, 550W
  • Supported Voltage Range: 100—240V AC, Management: Ethernet, AR, Heat Dissipation (Excluding PoE Output): 204.72 BTU/hr
  • Enclosure Material: SGCC steel, Mount Material: SGCC steel, Supported Rack Depth: 400~1200 mm, (15.7-47.2") LCM Display: 1.3" touchscreen,
  • ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV, Ambient Operating Temperature: -5 to 40° C (23 to 104° F), Ambient Operating Humidity: 10 to 90% noncondensing, NDAA Compliant: Yes, Certifications: CE, FCC, IC, Anatel
  • Application Requirements: UniFi Network: Version 5.14.12 and later
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU ZBD0OWTS2K
Brand Ubiquiti
Model USW-Enterprise-24-PoE (400W)
Condition New
Weight (lbs.) 13.7900
Manufacturer's Warranty 1 Year Limited Warranty
