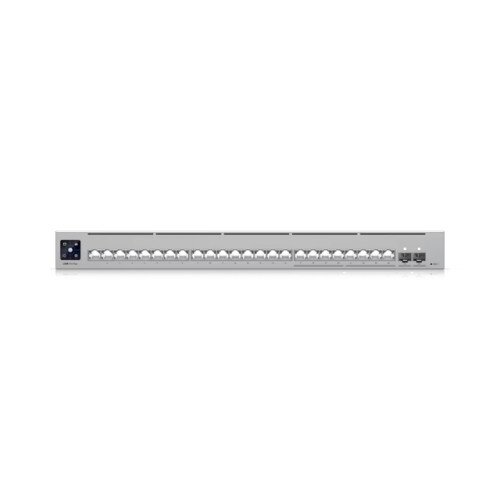

Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE Display Gallery Item 1
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE - 2 Display Gallery Item 2
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE - 3 Display Gallery Item 3
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE - 4 Display Gallery Item 4
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE - 5 Display Gallery Item 5
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE - 7 Display Gallery Item 6
Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE - 8 Display Gallery Item 7

Buy Ubiquiti Pro Max 24-Port Layer 3 Etherlighting Switch with 2.5 GbE Now

By: Ubiquiti

Model: USW-PRO-MAX-24

Sku: TI4WP7CIHK

Be the first to review this product

Sign up for price alert

AED 2,829

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Port Layout: 1 GbE RJ45: 16, (1G/100M/10M), 2.5 GbE RJ45: 8, (2.5G/1G/100M/10M), 10G SFP+: 2
  • Redundancy: DC Power Backup, Layer 3: Yes, Form Factor: Rack mount (1U), Etherlighting: Ywa
  • Switching Capacity: 112 Gbps, Total Non-Blocking Throughput: 56 Gbps, Forwarding Rate: 83 Mpps
  • Supported VLANs: 1,000, MAC Address Table Size: 16,000, L3 Table Size: ARP Entries: 6,000
  • DHCP Server (Local Networks): Yes, DHCP Relay: Yes, Inter-VLAN Routing (Local Networks): Yes, Static Routing (Local Networks): Yes
  • LACP Port Aggregation: Yes, STP & RSTP: Yes, QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes, Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes, IGMP Snooping: Yes, 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes, DHCP Snooping & Guarding: Yes, Egress Rate Limit: Yes, Flow Control: Yes
  • Storm Control: Yes, Multicast & Broadcast Rate Limiting: Yes, MAC Address Blocking: Yes, IP-Based ACLs & Network Isolation: Yes,
  • MAC-Based Port Restriction: Yes, Port Isolation: Yes, Port Mirroring: Yes, Jumbo Frames: Yes,
  • LLDP-MED: Yes, Voice VLAN: Yes, Loop Protection: Yes,
  • Max. Power Consumption: 50W, Power Method: (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input, Power Input Method: AC input, Power Supply: AC/DC, internal, 60W
  • Supported Voltage Range: 100—240V AC, Management: Ethernet, AR, Heat Dissipation (Excluding PoE Output): 170.6 BTU/hr
  • Enclosure Material: SGCC steel, Mount Material: SGCC steel, Supported Rack Depth: 400~1200 mm, (15.7-47.2"), LCM Display: 1.3" touchscreen
  • ESD/EMP Protection: Air: 16kV, contact: 12kV, Ambient Operating Temperature: -5 to 40° C (23 to 104° F), Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting: Ethernet: Yes, SFP+: Yes
  • Certifications: CE, FCC, IC
  • Application Requirements: UniFi Network: Version 8.0.24 and later
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU TI4WP7CIHK
Brand Ubiquiti
Model USW-PRO-MAX-24
Condition New
Weight (lbs.) 12.1850
Manufacturer's Warranty 1 Year Limited Warranty
