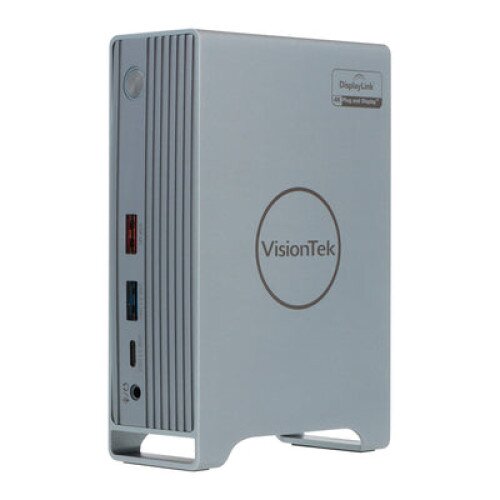

The VisionTek VT7100 Triple Display 4K Docking Station with 100W Power Delivery allows you to easily connect your Windows , Mac or Chrome laptop up to three 4K displays and up to 8 accessories and peripherals through a single USB connection.
This high-quality dock is a single-cable solution that enables you to take full advantage of up to three additional 4K displays, 4 USB-A devices, 1 USB-C device including full sized keyboard and mouse, external storage and mobile devices for charging and data transfer as well as up to 100W of Power Delivery.
- Supports 2 Displays (HDMI or DP) via DisplayLink
- Supports 1 Display (HDMI) via DP Alt Mode
- USB-C connection to host system
- 1 x HDMI (DisplayLink), 1 x DP (DisplayLink), 1 x HDMI (DP Alt Mode), 4 x USB-A (5Gbps), 1 x USB-C (5Gbps), 1 x USB-A Quick Charge, 1 x USB-C Power Delivery, Audio/Mic, Ethernet, Kensington Lock
- 100W of Power Delivery via USB-C, USB-A does not provide power
- Universal Compatibility for USB Type-C
- Full Compatible with M1 Mac
- Supports up to 3 external displays
- Up to 100W USB-C Power Delivery
- 4 x USB-A 3.1 Gen1 Ports 5Gbps
- USB-A Quick Charge Port
- USB-C Power Delivery Port
- DisplayPort 1.2
- RJ45 Gigabit Ethernet Port
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- Front Ports: Power Button , USB-A Quick Charge Port , USB-A 3.1 Gen1 Port ,
- 3.5mm Audio/Microphone Combo Jack
- Back Ports: DC 20V/6A Power Supply Port, 3 x USB-A 3.1 Gen1 Ports, USB-C Power Delivery Port, Kensington Security Lock Slot, DisplayPort Port (DisplayLink), HDMI Port (DisplayLink), HDMI Port (DP Alt Mode), Gigabit Ethernet Port
- Single Display Support: DisplayLink Ports: DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- DP Alt Mode HDMI: HDMI: Resolutions up to 4096 x 2160 30Hz (4K)
- Dual Display Support: DisplayLink Ports: DisplayPort + HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Triple Display Support: DisplayLink Ports: DisplayPort + HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Dock Connection: USB-C, USB 3.0
- Display Technology: DisplayLink, DP Alt Mode
- Power Adapter: 120W - DC 20V/6A
- Power Delivery: Up to 100W
- Displays Supported: 3
- Maximum Resolution Supported: 2 x 4K 60Hz (DisplayLink), 4K 30Hz* (DP Alt Mode)
- Video Interfaces: DP 1.2 (DisplayLink), HDMI 2.0 (DisplayLink), HDMI 1.4 (DP Alt Mode)
- Ports: (4) USB-A 3.1 Gen1 (5Gbps), USB-C 3.1 Gen1 (5Gbps), USB-A Quick Charge, USB-C Power Delivery, 3.5mm Audio/Microphone Combo Port, RJ45 Gigabit Ethernet
- Cable Length: 1.0m - USB-C
- Operating Systems: Windows 10, Window 8.1, Windows 7, macOS 10.x and later Chrome
- Dock to System Connection: USB-C 3.1, Thunderbolt 3
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -10 to 70° C (-14 to 158° F)
- Relative Humidity: 10% to 90% non-condensing - Operational / Storage
