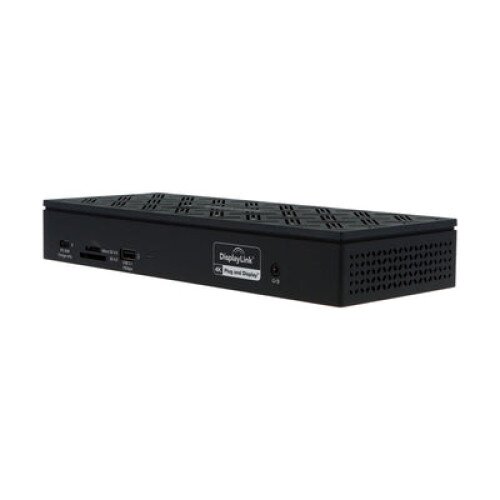

The VisionTek VT8000 Quad Display 4K Docking Station with 100W Power Delivery allows you to easily connect your Windows , Mac or Chrome laptop to four-4K displays and up to 8 accessories and peripherals through a single USB connection.
With a single-cable, take advantage of up to four additional 4K displays, 3 USB-A devices, a USB-C device including full sized keyboard and mouse, external storage, and mobile device connections for charging and data transfer. Supports up to 100W Power Delivery.
- Supports 4 Displays (HDMI or DP) via DisplayLink
- USB-C or USB-A connection to host system
- 4x HDMI, 4x DP, 4x USB-A Ports (5Gbps), 1x USB-C PD Port, Audio/Mic , SD/ Micro SD Card Reader, Ethernet, Kensington Lock
- 100W of Power Delivery via USB-C, USB-A does not provide power
- Universal Compatibility for USB 3.0 & Type-C
- Full Compatible with M1 Mac
- Supports up to 4 external displays
- Up to 100W USB-C Power Delivery
- 3 x USB-A 3.0 Ports 5Gbps
- USB-A 3.1 Gen 2 Port 10Gbps
- USB-C Power Delivery Port 30W
- 4 x DisplayPort 1.2
- 4 x HDMI 2.0
- RJ45 2.5 Gigabit Ethernet Port
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- Front Ports: SB-C Power Delivery Port (30W), icro SD Card Reader, SSD Card Reader, USB-A 3.1 Gen2 (10Gbps) , 3.5mm Audio/Microphone Combo Jack,
- Back Ports: DC 20V/9A Power Supply Port, 4 x HDMI Ports (DisplayLink), 4 x DisplayPort Ports (DisplayLink), 3 x USB-A 3.0 Ports, 2.5 Gigabit Ethernet Port, USB-C to System, Power Button, Kensington Security Lock Slot
- Display Outputs Supported: Single Display Support: DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Dual Display Support: DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Multi Display Support: Stream A: DisplayPort or HDMI: Resolutions up to 4096 x 2160 60Hz (4K), Stream B: DisplayPort or HDMI: Resolutions up to 4096 x 2160 60Hz (4K), Stream C: DisplayPort or HDMI: Resolutions up to 4096 x 2160 60Hz (4K), Stream D: DisplayPort or HDMI: Resolutions up to 4096 x 2160 60Hz (4K),
- Dock Connection: USB-C, USB 3.0
- Display Technology: DisplayLink
- Power Adapter: 180W - DC 20V/9A
- Power Delivery: Up to 100W
- Displays Supported: 4
- Maximum Resolution Supported: 2 x 5K 60Hz4 x 4K 60Hz
- Video Interfaces: (4) DP 1.2, (4) HDMI 2.0
- Ports: (3) USB-A 3.0 (5Gbps), USB-A 3.1 Gen2 (10Gbps), USB-C PD (30W), Micro SD Card Reader, SD Card Reader, 3.5mm Audio/Microphone Combo Port, RJ45 2.5 Gigabit Ethernet
- Cable Length: 1.0m - USB-C
- Operating Systems: Windows 10, Window 8.1, Windows 7, macOS 10.x and later Chrome
- Dock to System Connection: USB 3.0 Type A, USB-C 3.1, Thunderbolt 3
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -10 to 70° C (-14 to 158° F)
- Relative Humidity: 10% to 90% non-condensing - Operational / Storage
